Description

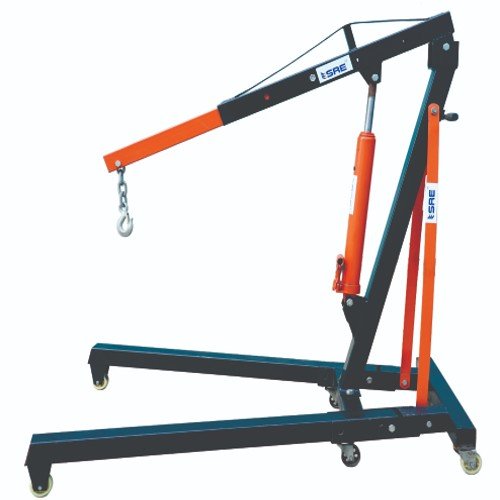

The hydraulic system is operated via a hand pump or lever, allowing the operator to raise and lower the load with ease. Many models include additional features such as adjustable lifting heights, swiveling or rotating capabilities for better load positioning, and locking mechanisms to secure the load during operation. Safety is prioritized with integrated features like overload protection, stabilizing outriggers or legs, and a strong, durable frame that ensures the crane remains stable even when lifting substantial weights.
The hydraulic floor crane is particularly suited for tasks such as machinery installation, engine repairs, and material handling, offering an efficient and flexible solution for lifting, positioning, and moving heavy loads in various industrial applications.
Specification |
|
| Capacity | 1000 kg |
| Height | 2000 MM |
| Capacity at top height | 600-700 kg |
| Min.Hook Height | 500 MM |
| Max. Hook Height | 2000 MM |
| Overall Length | 1920 MM |
| Overall Height | 2100 MM |
| Overall Width | 1150 MM |
| Wheel Diameter | Nylon block- 180x50MM |
| Boom Length | 1850 MM(Close 1200MM) |
| Self-Weight | 120-150 Kg |
| Model | Import Model |
