Applications of Dia Loader in Ahmedabad and Key Features Every Press Shop Manager Must Know

Die aur mould handling industrial facilities mein sabse physically hazardous tasks mein se ek hai — Ahmedabad, Pune, aur Faridabad ke press shops, injection moulding units, aur toolrooms mein yeh daily challenge hai. Dies ka weight 100 kg se 500 kg tak hota hai, inhe press bed height par precisely position karna padta hai, aur har shift mein repeated movements hote hain bina precision surfaces ko damage kiye. Manual trolleys aur crane slinging se injury risk aur die damage dono hote hain — dono hi bahut costly problems hain. The Dia Loader in Ahmedabad from SRE Material Handling Equipment Pvt. Ltd. — 500 kg rated, 1,500 mm maximum lift height, ₹75,000 + GST — yeh ek engineered solution hai safe, precise, aur single-operator die handling ke liye across Gujarat, Maharashtra, aur North India manufacturing facilities.

How a Dia Loader Solves Die Handling Challenges in Ahmedabad and Pune Press Shops

Press shops aur injection moulding units in Ahmedabad’s Vatva GIDC, Naroda, aur Changodar mein — aur automotive component suppliers in Pune, Faridabad, aur Gurugram mein — har shift mein 4 se 20 die changes perform hote hain. Har die change mein die ko press bed height par lift karna padta hai (typically 800 mm se 1,400 mm), press T-slot layout ke saath align karna padta hai, aur smoothly press bed par push karna padta hai bina snag kiye ya tilt kiye. Bina hydraulic die loader ke, yeh ek 2 se 4-person manual task hai — pry bars, trolleys, aur chain slinging ke saath — jo precision tool damage ka frequent cause hai. SRE Dia Loader yeh sab eliminate karta hai: hydraulic lift platform 500 kg die ko exact required press bed height par raise karta hai, aur roller surface operator ko die ko single push se slide in karne deta hai — koi lifting nahi, koi alignment improvisation nahi.

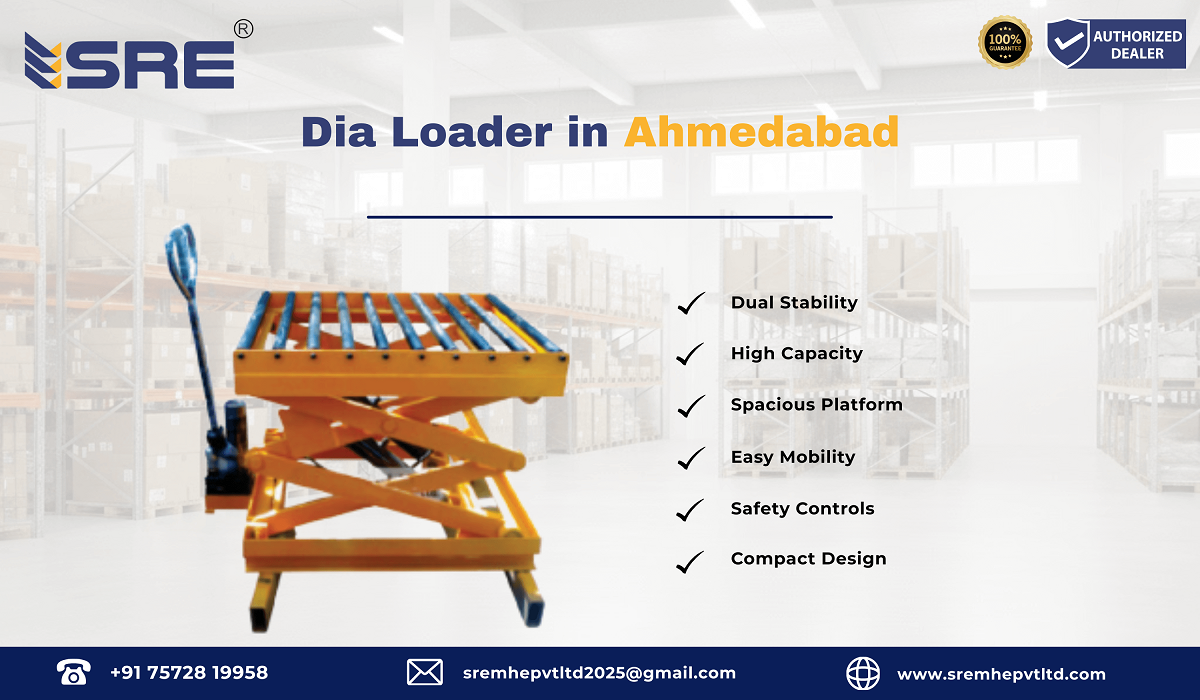

SRE Material Handling Equipment Pvt. Ltd., ek ISO 9001:2015 certified, MSME-registered manufacturer jo Ahmedabad se 2011 se operate kar raha hai, Dia Loader ko engineer karta hai hydraulic scissor mechanism ke saath jo stepless height adjustment deta hai floor level se 1,500 mm maximum height tak — jo sabhi standard mechanical aur hydraulic press bed heights ko cover karta hai across Gujarat aur Maharashtra. Platform surface par hardened steel rollers hote hain jo ek operator ko 500 kg die ko loader se press bed par push karne dete hain under 30 kg horizontal push force mein — yeh genuine single-operator task ban jaata hai. 500 kg load capacity majority of standard progressive dies, single-station dies, aur injection moulds ko cover karti hai.

Hydraulic Lift Mechanism and Height Control Precision

Press shop mein die loader ke liye height adjustment ki precision critical specification hai. Jo unit ±2 mm press bed level accuracy tak fine-tune nahi kar sakta, woh die change process ko slow karta hai rather than accelerate karne ke. SRE Dia Loader ek single ya dual scissor hydraulic mechanism use karta hai manual ya electric hydraulic pump ke saath, jo step-by-step height fine-tuning allow karta hai. Hardened steel roller platform — ya optional low-friction nylon slide surface — 500 kg die ko slide karne ke liye required force ko under 30 kg horizontal push force tak reduce karta hai. Custom platform dimensions non-standard press bed sizes ke liye available hain SRE se 10 se 15 working days mein.

---

Key Applications of Dia Loader Across Industries in Gujarat, Maharashtra, and Pan India

The dia loader har manufacturing sector mein essential hai jahan dies, moulds, ya heavy tooling require karte hain precise vertical positioning during changeover. Below are the primary deployment scenarios across facilities in Ahmedabad, Pune, Faridabad, Jaipur, Indore, aur Gurugram served by SRE Material Handling Equipment Pvt. Ltd.

• Press Shops & Stamping Units (Ahmedabad, Pune, Faridabad): Progressive dies, blanking dies, aur deep-draw dies ko mechanical aur hydraulic presses mein load/unload karna — hydraulic height adjustment precisely press bed height match karta hai bina crane use kiye.
• Injection Moulding Units (Gujarat, Maharashtra): Horizontal injection moulding machines par moulds mount/dismount karna — die loader mould ko exactly machine platen height par raise karta hai smooth guided slide-in ke liye.
• Forging & Die Casting (Bhavnagar, Kutch, Rajasthan): Heavy forging dies aur die-casting moulds (200–500 kg) ko forging presses mein position karna jahan manual positioning practically impossible hai.
• Toolroom Die Storage & Retrieval (Ahmedabad, Pune, Noida): Dies ko storage racks se press bay floor level tak aur wapas move karna — die loader transport platform aur height-adjustable work table dono ke roop mein serve karta hai die inspection aur maintenance ke liye.
• Automotive Component Manufacturers (Pune, Gurugram, Faridabad): JIT production environments mein high-frequency die changes jahan die change time directly production schedule impact karta hai — die loader change time 15–20 minutes se under 5 minutes kar deta hai.
• Electrical Component Press Shops (Ahmedabad, Vadodara, Bangalore): Terminal, contact, aur connector pressing ke liye precision dies (50–200 kg) handle karna — fine height control die edge damage prevent karta hai press bed alignment ke dauran.
• Sheet Metal Fabrication (Vatva, Naroda, Kathwada): Press brakes aur turret punch presses par bending dies, punching tools, aur forming tooling position karna jahan manual positioning die edge chipping ka leading cause hai.
• Rubber & Plastic Moulding (Gujarat, Maharashtra, Rajasthan): Compression moulds aur transfer moulds handle karna — roller platform smooth mould positioning allow karta hai bina impact loading ke jo mould face damage cause karta hai.
• Pharmaceutical Tablet Press Toolrooms (Ahmedabad, Hyderabad): Heavy tablet press tooling sets aur punching station assemblies ko safely transport aur position karna planned maintenance changeovers ke dauran.
• Heavy Equipment Maintenance Bays (Pan India): Large components — hydraulic cylinders, gearbox assemblies, transmission units — ko working height par position karna overhaul operations ke dauran, precision height-adjustable work platform ke roop mein use hota hai.

---

Key Features of SRE Dia Loader That Toolroom Managers in Pune, Faridabad, and Jaipur Must Evaluate

Load Capacity, Height Range, and Height Control Precision

The SRE Dia Loader’s hydraulic scissor mechanism 200 mm (lowered) se 1,500 mm (maximum lift height) tak stepless height adjustment provide karta hai — jo standard mechanical presses (600–1,200 mm) aur large hydraulic presses (900–1,400 mm) ki full press bed height range cover karta hai across Gujarat, Maharashtra, aur Rajasthan press shops. 500 kg rated capacity ke saath IS 2062 MS steel scissor frame aur NBR-sealed hydraulic cylinder provide karta hai 10,000+ lift cycles ka rated service life first hydraulic maintenance se pehle. Pump handle se height positioning ±2 mm accuracy par hoti hai — jo die shanks ko press ram T-slots ke saath align karne ke liye sufficient hai secondary adjustment tools ke bina.

Specification	SRE Dia Loader	Manual Die Trolley
Load Capacity	500 kg	200–500 kg (push only, no lift)
Lift Height	200–1,500 mm stepless hydraulic	Fixed floor level only
Height Precision	±2 mm via pump fine-control	None — no height adjustment
Platform Surface	Hardened steel rollers / nylon slide	Plain steel surface
Operators Required	1 (single operator)	2–4 (manual lift team)
Die Damage Risk	Very low — controlled slide-in	High — impact loading on placement
Price	₹75,000 + GST	₹8,000–₹25,000

Frame Construction and Platform Surface Options

The SRE Dia Loader scissor frame IS 2062 Grade A mild steel se fabricate hota hai MIG-welded scissor arms aur precision-machined pivot pins ke saath — smooth, jam-free operation ke liye full height range par. Platform surface options mein shamil hain: hardened steel roller conveyor (heavy dies ke liye jo press beds par same plane mein slide hote hain), low-friction nylon slide plate (precision tools ke liye jahan roller contact marks acceptable nahi hain), aur plain steel plate (general purpose ke liye). Custom platform dimensions non-standard press bed sizes ke liye available hain 10 se 15 working days mein. Also explore the complete Scissor Lift range, the Hydraulic Stacker for vertical warehouse storage, aur the Mobile Scissor Lift. Read the SRE Blog for more guides. Also see the Permanent Magnetic Lifter guide. External: OSHA ergonomics guidelines for safe die handling. ISO 9001:2015 governs SRE manufacturing. BIS IS 2062 structural steel standard applies. Contact SRE for bulk pricing.

---

Why SRE Material Handling Equipment Pvt. Ltd. Is the Trusted Dia Loader Manufacturer Across Gujarat and Pan India

SRE Material Handling Equipment Pvt. Ltd., ISO 9001:2015 certified, MSME-registered, Make in India, founded in Ahmedabad in 2011, manufactures its Dia Loader with in-house scissor frame fabrication, hydraulic system assembly, aur full load-cycle testing before dispatch. Standard delivery: 7 se 10 working days. Custom sizes available in 10 se 15 working days. After-sales support covers hydraulic seal replacement, roller maintenance, aur scissor pivot servicing across Gujarat, Maharashtra, Rajasthan, aur pan India with spare parts from the Ahmedabad depot within 48 se 72 hours. Facilities served include Ahmedabad, Vadodara, Bhavnagar, Kutch, Himmatnagar, Vatva, Kathwada, Kalol, Ghandhidham, Mahesana, Chattral, Pune, Bangalore, Mangalore, Chennai, Hyderabad, Noida, Jaipur, Udaipur, Bhopal, Faridabad, Indore, Rohtak, Ambala, aur Gurugram.

Frequently Asked Questions — Dia Loader

Q1: SRE Dia Loader ki load capacity aur maximum lift height kya hai Ahmedabad aur Pune ke press shops ke liye?

The SRE Dia Loader is rated at 500 kg capacity with lift height range of 200 mm (lowered) to 1,500 mm (maximum) — covering all standard mechanical press bed heights from 600 mm to 1,400 mm in Ahmedabad, Pune, aur Faridabad press shops. Stepless hydraulic height adjustment allows positioning to ±2 mm accuracy. Starting price: ₹75,000 + GST. Standard delivery: 7 se 10 working days from SRE Material Handling Equipment Pvt. Ltd. in Ahmedabad.

Q2: How does the SRE Dia Loader reduce die change time in press shops in Gurugram and Faridabad?

The SRE Dia Loader manual die lifting aur crane dependency eliminate karta hai press die changes ke dauran. Hydraulic platform 500 kg die ko exact press bed height par raise karta hai, aur roller surface ek operator ko die ko press bed par 30 kg se kam horizontal push force se push karne deta hai. Yeh die change time 15–20 minutes (3–4 person manual team) se 5 minutes se kam (single operator) tak reduce karta hai Gurugram, Faridabad, aur Pune automotive press shops mein.

Q3: What platform surface options are available on the SRE Dia Loader for precision tooling in Ahmedabad and Vadodara toolrooms?

The SRE Dia Loader teen platform surface options ke saath available hai: hardened steel roller conveyor (heavy dies ke liye jo press beds mein slide hote hain), low-friction nylon slide plate (precision tooling ke liye jahan roller contact marks acceptable nahi hain), aur plain steel plate (general purpose). Sab options SRE Material Handling Equipment Pvt. Ltd. se Ahmedabad mein available hain. Custom platform dimensions non-standard press bed sizes ke liye 10 se 15 working days mein available hain.

Q4: Can the SRE Dia Loader be used for injection moulding machine mould changes in Gujarat and Maharashtra moulding units?

Haan. SRE Dia Loader’s 200–1,500 mm stepless height adjustment standard horizontal injection moulding machines ki platen height range — typically 600 mm to 1,200 mm — cover karta hai. Roller platform mould ko smoothly loader se machine platen par slide karne deta hai bina crane lifting ke, mould change time 60–70% reduce hota hai, aur mould damage risk eliminate hoti hai crane slinging se associated Gujarat aur Maharashtra injection moulding facilities mein.

Q5: Ahmedabad ya Gujarat ke press shop ke liye Dia Loader ki delivery kitne din mein milti hai aur customization available hai kya?

SRE Material Handling Equipment Pvt. Ltd. ke Ahmedabad plant se Dia Loader ki standard delivery 7 se 10 working days mein hoti hai. Custom platform size, special roller configuration, ya non-standard height range ke liye 10 se 15 days lag sakte hain. Minimum order 1 unit. Bulk orders (3+ units) par factory-direct pricing aur priority dispatch milta hai. ISO 9001:2015 certified manufacturing quality guaranteed.

Q6: Pune ya Bangalore ke toolroom ke liye Dia Loader aur overhead crane mein kaun sa better option hai die handling ke liye?

Toolroom die handling ke liye Dia Loader overhead crane se far better option hai. Crane ke liye trained rigger, slinging equipment, aur overhead clearance chahiye — har die change 15–20 min leta hai. Dia Loader single operator operation deta hai, ±2 mm height precision ke saath, aur controlled roller slide-in — change time 5 minutes se kam. Die damage risk bhi significantly kam hota hai crane slinging vs controlled roller slide mein.

Q7: Kya Dia Loader ki maintenance aur spare parts service Ahmedabad, Vatva, Naroda aur Gujarat ke press shop areas mein available hai?

Haan. SRE Material Handling Equipment Pvt. Ltd. ke through Ahmedabad, Vatva, Naroda, Kathwada, Vadodara, Bhavnagar, Kutch, Mahesana, aur Kalol mein hydraulic seal replacement, roller assembly service, scissor pivot maintenance, aur pump unit repair available hai. Spare parts Ahmedabad depot se next-day local dispatch hote hain, pan-India 48 se 72 hours mein delivery. Annual maintenance cost typically ₹1,000 se ₹2,000.
