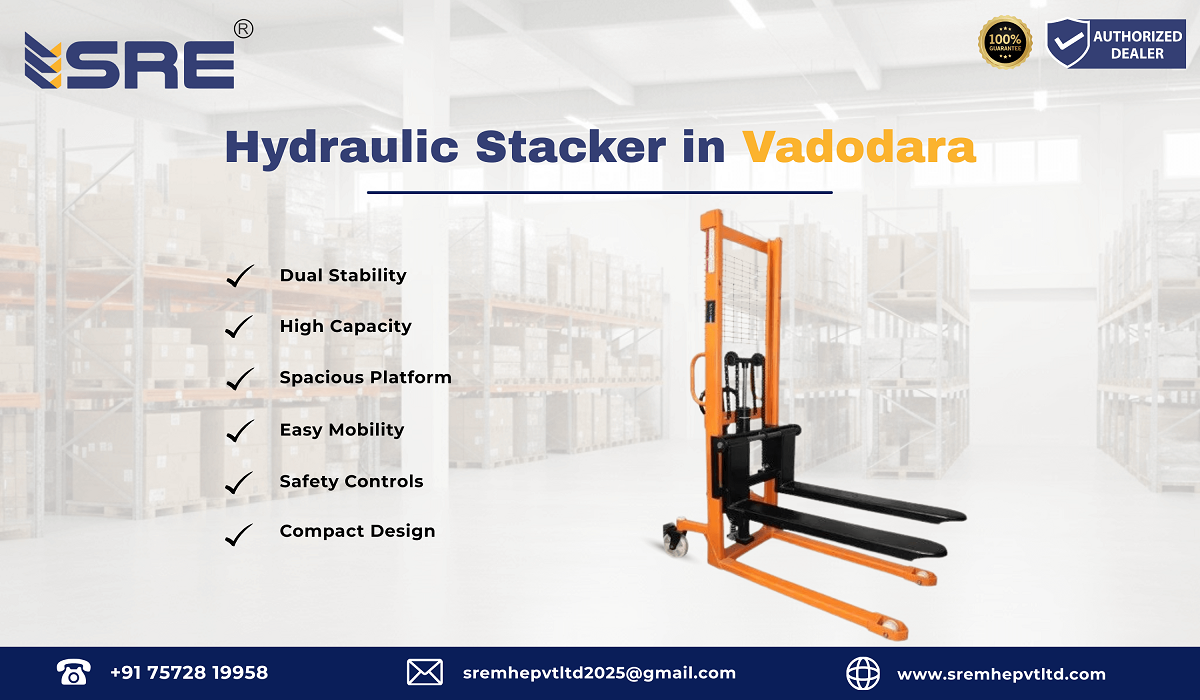

Hydraulic Stacker in Vadodara

2 Ton (All Size Available)

Rs.38000

(Taxes to be paid extra)

Brand: SRE

Min Order Qty: 1

Plant managers and warehouse supervisors across Vadodara’s industrial zones — from Makarpura GIDC to Nandesari and Waghodia — deal with a concrete operational problem every single shift: loads of 500 kg to 2,000 kg need to be raised to rack height repeatedly, safely, and without adding more headcount. Manual lifting to elevated positions above waist height is both a safety hazard and a productivity drain. Full electric forklifts are operationally oversized and financially unjustifiable for most mid-scale production floors. The practical answer — and the one that tens of thousands of Indian factory operators have standardised on — is the Hydraulic Stacker in Vadodara: a compact, freestanding, manual hydraulic unit that gives one operator the ability to lift and place loads at heights of 1.6 m to 3.5 m with consistent, controlled effort. SRE Material Handling Equipment Pvt. Ltd., an ISO 9001:2015 certified and MSME registered manufacturer based in Ahmedabad, supplies this equipment directly to factories, warehouses, and logistics hubs across Vadodara, Pune, Ahmedabad, Bangalore, and PAN India — with standard dispatch in 5–7 working days for single units.

Why Hydraulic Stackers Are the Default Vertical Lifting Choice for Vadodara and Gujarat Industries

In Vadodara’s auto-component plants, chemical processing units, and textile warehouses, the cost of forklift ownership — capital expenditure of ₹8 lakh to ₹18 lakh per unit, licensing requirements, and dedicated operator costs — is simply not justified for operations handling 60 to 120 pallet lifts per shift in confined aisle layouts. The hydraulic stacker for warehouse use fills this gap precisely: it costs ₹30,000 to ₹55,000 depending on capacity and lift height, requires no external power source, no licensing, and is operational within 30 minutes of delivery. For purchase managers in Gujarat comparing total cost of ownership across a 5-year window, a hydraulic stacker delivers its return on investment within the first 4 to 8 months through labour cost reduction, faster cycle times, and near-zero maintenance expenditure.

The mechanical principle behind a manual hydraulic stacker is straightforward but robust: a foot-pump or handle-operated hydraulic cylinder raises the forks and load to the specified lift height, where a controlled release valve manages descent. The load path goes through a single-acting hydraulic cylinder, a hardened-steel mast assembly, and straddle outrigger legs fabricated from IS 2062 grade MS steel — the same structural steel specification used in Indian bridge and construction applications, with a minimum yield strength of 250 MPa. SRE Material Handling Equipment Pvt. Ltd. MIG-welds all load-bearing joints to a consistent 6 mm bead and applies a two-coat epoxy-powder finish for corrosion resistance across the high-humidity environments common in coastal Gujarat, including Kutch, Bhavnagar, and Ghandhidham.

Lift Height vs Load Capacity — Selecting the Right Configuration for Your Facility

The most common procurement mistake logistics heads in Vadodara, Jaipur, and Faridabad make is buying a stacker by price alone without matching lift height to their actual racking configuration. A stacker rated for 1.6 m lift height cannot service second-tier racking at 2.2 m — and the mast cannot be extended in the field. The SRE hydraulic stacker range covers five standard configurations: 1.6 m, 2.0 m, 2.5 m, 3.0 m, and 3.5 m lift heights — each available with fork lengths of 900 mm (standard pallet) or 1,150 mm (extended pallet). Capacity is rated at the maximum lift height; at lower lifting positions, the safe working load is proportionally higher. For operations in Makarpura GIDC running standard Indian wooden pallets at single-deep rack height, the 1.6 m / 2-ton configuration at ₹38,000 is the most economically optimal choice.

IS 2062 Steel Construction and Pre-Dispatch Quality Protocol

Procurement heads in pharma and food processing industries in Vadodara and Ahmedabad frequently ask for documentation of structural steel grade and weld quality before approving capital equipment purchases. SRE Material Handling Equipment Pvt. Ltd. manufactures all hydraulic stacker mast channels, chassis frames, and outrigger legs from IS 2062 grade MS steel — traceable to mill test certificates on request. Every unit undergoes a pre-dispatch test protocol: a rated-load lift to full height, hydraulic pressure hold test at 110% of working load for 60 seconds, fork alignment check against ±1.5 mm tolerance, and a wheel-load distribution verification. This documentation ships with every unit, giving quality managers in ISO-certified facilities across Gujarat and Maharashtra the traceability records their QMS requires.

Key Applications of Hydraulic Stacker Across Vadodara, Ahmedabad, Pune, and Major Indian Industrial Zones

The hydraulic stacker is one of the most application-versatile pieces of material handling equipment in Indian industry because it functions independently of electricity, requires no floor modification, and operates effectively in any facility with flat concrete flooring. The following are the primary industry verticals where SRE hydraulic stackers drive measurable operational improvement across Vadodara, Ahmedabad, Pune, Bangalore, Mangalore, Chennai, Hyderabad, Noida, Jaipur, Udaipur, Bhopal, Indore, Faridabad, Rohtak, Ambala, Gurugram, Bhavnagar, Kutch, Himmatnagar, Vatva, Kathwada, Kalol, Ghandhidham, Mahesana, and Chattral.

• Auto-Ancillary and Engineering Manufacturing — Vadodara’s Makarpura and Nandesari clusters house over 3,000 auto-component and engineering units. Hydraulic stackers handle stamped metal parts, castings, and sub-assemblies in steel bins, allowing single operators to load second-tier racks that previously required two-person manual teams — reducing labour deployment per stacking cycle by 40 to 50%.
• Chemical and Petrochemical Plants — Across the Vatva and Nandesari chemical belts in Gujarat, IBC containers (filled weight 1,200 to 1,500 kg) and 200-litre HDPE drum pallets (450 to 600 kg per pallet) are routinely moved using 2-ton hydraulic stackers. The manual operation — with no battery or motor — eliminates spark risk in chemical storage zones.
• Pharmaceutical and Healthcare Warehouses — GMP-certified plants in Vadodara and Ahmedabad require non-spark, non-emission equipment in finished goods stores. The manually operated hydraulic stacker with epoxy-powder coating and stainless-steel fork options meets basic GMP handling requirements for carton and pallet movement at rack heights up to 3 m.
• FMCG and Food Processing Distribution — Plants in Mahesana, Kalol, and Vatva with high daily pallet throughput (80 to 150 pallets per shift) use hydraulic stackers at goods-in and goods-out staging areas where forklift manoeuvrability is limited by aisle widths under 1.2 m.
• Textile and Garment Warehouses — Fabric roll and baled goods storage in Bhavnagar, Surat, and Vadodara textile units relies on 1.6 m to 2.5 m lift height stackers to place goods on raised racking without ceiling obstruction. The narrow-aisle design (overall width 750–800 mm) is critical in these space-constrained facilities.
• Cold Storage and Frozen Food Warehousing — Manual hydraulic stackers have no battery to degrade in cold environments (−18°C to +5°C). In cold chain facilities in Pune and Bangalore, this makes them a simpler, lower-maintenance alternative to battery-powered stackers for light-duty operations under 500 kg per pallet.
• E-Commerce and 3PL Fulfillment Centres — High-turnover distribution facilities in Gurugram, Noida, and Indore use manual hydraulic stackers as fixed-point equipment at each rack bay for replenishment, reducing the time operators spend walking between a central forklift and individual rack positions.
• Packaging and Paper Industry — Paper reams, corrugated box stacks, and printed carton pallets in Kalol, Kutch, and Chattral packaging units are typically 400 to 700 kg per pallet. A 1-ton hydraulic stacker with 1,150 mm fork length handles extended-footprint paper pallets cleanly without fork tip overhang issues.

Key Technical Features of SRE Hydraulic Stacker — What Vadodara and Maharashtra Purchase Managers Must Verify

When procurement teams in Vadodara, Pune, and Hyderabad evaluate hydraulic stackers, four technical parameters determine operational suitability: rated load capacity, maximum lift height, fork configuration, and structural steel grade. The SRE hydraulic stacker range — manufactured under ISO 9001:2015 quality management — directly addresses all four. Standard models offer rated capacities from 500 kg to 2,000 kg; lift heights from 1.6 m to 3.5 m; fork lengths of 900 mm (narrow-fork) or 1,150 mm (wide-fork); and uniform IS 2062 grade MS steel construction throughout. The hydraulic cylinder is a single-acting type with a 180 bar rated working pressure, a controlled descent valve that regulates lowering speed at approximately 50 to 60 mm per second, and a factory-set pressure relief at 110% of rated working load — preventing structural overloading in the field.

Model Comparison Table — SRE Hydraulic Stacker Capacities, Heights & Pricing

* Prices exclusive of GST. Custom fork widths, mast heights, and SS fork options available. Contact SRE for bulk pricing above 5 units.

Hydraulic Stacker vs Manual Stacker vs Semi Electric Stacker — Choosing the Right Equipment

SRE Material Handling Equipment Pvt. Ltd. — Manufacturing Reliability and Bulk Supply Capability for Vadodara, Rajasthan, and Beyond

A consistent challenge for factory owners in Indore, Bhopal, Rohtak, and Faridabad when sourcing hydraulic stackers from distant manufacturers is quality inconsistency across bulk orders — the first unit inspects well, the second batch arrives with variable weld quality, inconsistent fork alignment, or mismatched hydraulic components. SRE Material Handling Equipment Pvt. Ltd., operating under an ISO 9001:2015 Quality Management System at its Ahmedabad manufacturing facility, eliminates this variance through batch-level production controls. Every unit in a bulk order passes the same four-point pre-dispatch protocol — rated-load lift test, hydraulic seal pressure hold, fork alignment check, and wheel-load distribution verification — before dispatch. For orders above 5 units, the company provides a consolidated quality inspection report covering all units in the batch.

Supply timelines matter as much as quality for plant managers in Vadodara and logistics heads in Gujarat who are coordinating new warehouse setup or production line expansion. SRE Material Handling Equipment Pvt. Ltd., MSME registered and operating under the Make in India initiative, maintains ready stock of the most commonly specified hydraulic stacker models — 1-ton / 1.6 m and 2-ton / 1.6 m — with a confirmed dispatch window of 5 to 7 working days for single-unit and small-batch orders. Custom configurations (non-standard mast heights, wider fork spacing, SS fork overlay for food-grade environments) are manufactured to order within 15 to 21 working days. Delivery is available PAN India, covering all of Gujarat, Maharashtra, Rajasthan, Karnataka, Tamil Nadu, Telangana, and the National Capital Region.

Maintenance Requirements, Safety Standards, and After-Sales Support for Hydraulic Stackers in Gujarat and PAN India

One of the primary reasons purchase managers in Vadodara, Ahmedabad, and Jaipur specify hydraulic stackers over battery-powered alternatives for light-to-medium duty applications is the near-zero maintenance burden. The entire system has three serviceable components: hydraulic fluid (ISO VG 46 grade, drained and replaced every 1,000 operating hours or 12 months), wheel bearings (greased every 500 hours), and the sealing kit on the hydraulic cylinder (replacement interval typically 5 to 8 years under normal operating loads). There is no motor, no battery, no charger, and no electronic controller to maintain. Replacement seal kits for the hydraulic cylinder are available from hydraulic component suppliers across Gujarat at a typical cost of ₹800 to ₹1,500 per service — making the total annual maintenance cost of a hydraulic stacker well under ₹5,000 in most operating environments.

On the safety compliance front, factory owners in pharma, chemical, and food processing sectors in Vadodara, Pune, and Chennai need assurance that their material handling equipment includes baseline overload protection. The SRE hydraulic stacker includes a factory-set hydraulic pressure relief valve that prevents lifts above 110% of rated working load — providing a physical overload stop that does not depend on operator judgement. The controlled descent valve ensures that even if the operator fully releases the lowering lever, the forks descend at a controlled rate of 50 to 60 mm per second — preventing sudden load drops that can damage racking or cause injury. Mast roller guides use hardened steel throughout, maintaining fork alignment within ±1.5 mm at full height under rated load. These safety features align with ISO 3691 industrial truck safety standards and OSHA powered industrial truck guidelines. For BIS compliance reference, procurement teams can verify applicable Indian standards at BIS India.

Explore Related SRE Material Handling Equipment for Your Facility

• 🔧 Hydraulic Stacker Range — Full product range with all capacity and height configurations.
• ⚡ Electric Stacker — For high-frequency operations requiring fully powered lift and travel.
• 🪣 Hydraulic Pallet Truck — Ground-level horizontal pallet movement without vertical lifting.
• 📦 Industrial Goods Lift — Fixed inter-floor vertical transport for mezzanine and multi-level setups.
• 📐 Mobile Scissor Lift — For elevated work platforms and adjustable-height access requirements.

Related blog reading:

• 📖 Semi Electric Stacker in Vadodara — Application Guide
• 📖 Semi Electric Stacker in Pune — Features and Use Cases
• 📖 Manual Stacker in Ahmedabad — Buyer’s Guide

Frequently Asked Questions — Hydraulic Stacker in Vadodara

English FAQs — For Procurement Managers & Factory Buyers

What is the price of a Hydraulic Stacker in Vadodara, and which capacity is best for a mid-size warehouse or factory?

The SRE hydraulic stacker price in Vadodara starts at ₹30,000 for a 500 kg / 1.6 m model and reaches ₹38,000 for the 2-ton capacity variant (taxes extra, min. order 1 unit). For mid-size Gujarat warehouses handling standard wooden pallets at single-deep racking, the 1-ton / 1.6 m model covers 90% of use cases. For auto-component plants or chemical drum storage in Vadodara’s GIDC zones, the 2-ton model is the correct specification. Contact SRE Material Handling Equipment Pvt. Ltd. for a free capacity recommendation.

How does a Hydraulic Stacker differ from a Semi Electric Stacker, and which is better for heavy industrial use in Gujarat?

A hydraulic stacker uses a manual foot-pump or handle-pump mechanism — no battery required, no charging, and no motor maintenance. A semi electric stacker uses a 24V DC battery to power the lift, eliminating pumping effort and completing a lift cycle in under 20 seconds vs 35 to 50 seconds for the manual hydraulic version. For operations in Gujarat running fewer than 80 lifts per shift with loads under 2 tons, the hydraulic stacker is the better value. For two-shift facilities with 120+ lift cycles daily, the semi electric model delivers faster payback on the higher initial investment through operator fatigue reduction and cycle speed improvement.

What are the maintenance requirements and expected service life of an SRE Hydraulic Stacker in Indian industrial conditions?

The SRE hydraulic stacker requires hydraulic fluid replacement (ISO VG 46 grade) every 1,000 operating hours or 12 months. Wheel bearings are greased every 500 hours. The hydraulic cylinder seal kit — available from Gujarat hydraulic suppliers at ₹800 to ₹1,500 — typically lasts 5 to 8 years under standard loads. There is no battery, motor, or electronic controller to maintain. Total annual maintenance cost is typically under ₹5,000. Under standard use in Vadodara and Ahmedabad industrial environments, service life is 10 to 15 years, making it one of the lowest total-cost material handling investments available.

Can SRE supply Hydraulic Stackers in bulk for multi-site warehouse projects across Vadodara, Pune, and Bangalore?

SRE Material Handling Equipment Pvt. Ltd., MSME registered and ISO 9001:2015 certified, maintains production-ready stock of standard hydraulic stacker models for bulk procurement. Orders of 5 to 20 units are dispatched within 15 to 21 working days with a consolidated quality inspection report. The company has supplied multi-unit orders to factories and 3PL operators across Vadodara, Pune, Bangalore, Gurugram, Noida, Jaipur, and Hyderabad. Custom fork dimensions, mast heights, and SS fork options are available within the same lead time. Contact SRE directly for a bulk quotation with committed delivery dates.

Hindi FAQs — Vadodara, Gujarat, Rajasthan aur Maharashtra ke liye

Vadodara mein Hydraulic Stacker ki delivery kitne din mein milti hai aur 2 ton model ka price kya hai?

SRE Material Handling Equipment Pvt. Ltd. ka 2-ton hydraulic stacker Vadodara mein 5 se 7 working days mein deliver hota hai single unit ke liye. Price ₹38,000 plus taxes hai. Bulk order — 5 ya zyada units — ke liye 15 se 21 working days lagti hain, aur isme custom mast height aur fork size bhi available hain. MSME registered aur ISO 9001:2015 certified manufacturer hone ki wajah se quality documentation bhi saath mein milti hai.

Ahmedabad ya Gujarat ke warehouse ke liye Hydraulic Stacker ka kaunsa model best hai — 1 ton ya 2 ton?

Ahmedabad aur Gujarat ke standard warehouses mein jo FMCG, pharma ya packaging goods handle karte hain, unke liye 1-ton hydraulic stacker kafi hai. Lekin chemical drums, auto parts ya heavy casting handle karne wali factories ke liye — especially Vatva, Nandesari, aur Makarpura GIDC zones mein — 2-ton model sahi specification hai. Order karne se pehle apni maximum pallet weight aur rack height specify karein. SRE free capacity guidance deta hai.

Kya Hydraulic Stacker ki maintenance service Vadodara ya Gujarat mein available hai aur spare parts kitne mein milte hain?

Hydraulic stacker ka maintenance bohot simple hai — sirf hydraulic fluid change (1,000 hours ya 12 mahine) aur wheel bearing greasing (500 hours). Seal kit Gujarat ke kisi bhi hydraulic supplier se ₹800 se ₹1,500 mein milti hai. Koi battery, motor ya controller nahi hai — isliye annual maintenance cost ₹5,000 se kam rehti hai. SRE Material Handling Equipment Pvt. Ltd. key industrial zones mein AMC bhi provide karta hai. Machine life 10 to 15 saal hai proper use ke saath.
