Jib Crane Manufacturer in Pune – Applications, Key Features & Workstation Lifting Guide

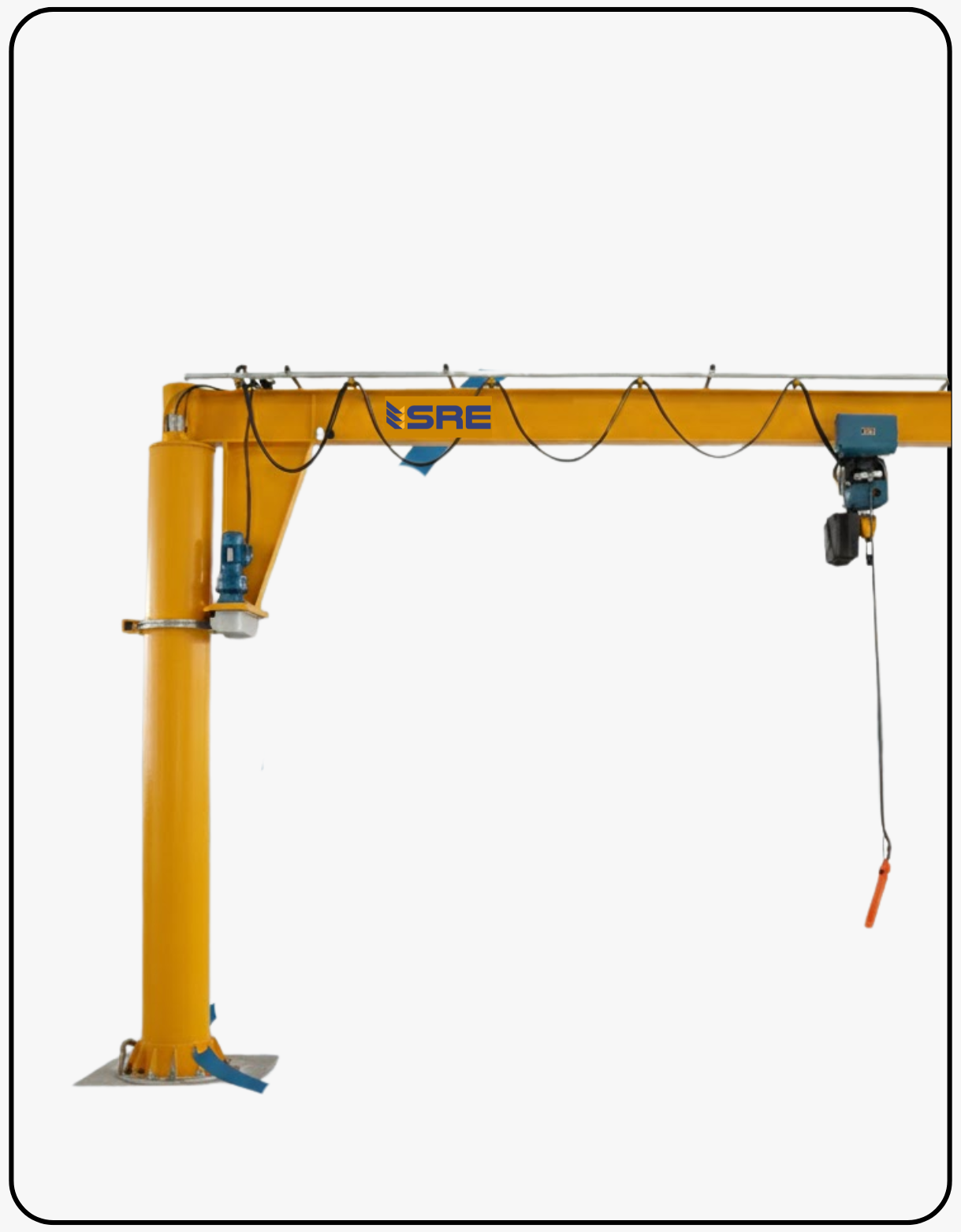

On CNC machining lines and precision assembly stations across Pune’s Pimpri-Chinchwad and Chakan industrial areas, one of the most persistent and underappreciated productivity drains is the time workers lose to repositioning heavy components manually at individual workstations. A machinist needing to load a 150 kg casting into a vertical machining centre 40–60 times a day cannot do so without mechanical assistance — and a full overhead EOT crane is both over-specified and space-inefficient for this task. This is exactly where a jib crane solves the problem: a compact, 270°–360° slewing arm crane mounted to a column or wall that serves one or two dedicated workstations with a 250 kg to 3 Ton electric chain hoist. SRE Material Handling Equipment Pvt. Ltd., ISO 9001:2015 certified and operating from Ahmedabad, manufactures and supplies jib cranes for factories, workshops, and assembly lines across Pune, Maharashtra, Gujarat, and PAN India.

Applications of Jib Cranes in CNC Shops, Assembly Lines, and Toolrooms in Pune and Maharashtra

Workstation-Level Lifting – Where Jib Cranes Deliver Measurable Productivity Gains

Toolroom managers and production engineers in Pune, Bangalore, and Chennai frequently report a specific bottleneck: the plant has an overhead EOT crane for bay-level material movement, but at individual CNC machining stations, press stations, or welding bays, operators are still manually lifting components — a practice that violates ergonomic safety norms and adds 8–15 minutes per cycle for heavy-component handling. A column-mounted jib crane with a 4–6 metre boom and a 500 kg electric chain hoist mounted directly at the workstation eliminates this bottleneck. The 270° slew allows the operator to pick from a pallet on one side and load the machine on the other without involving the bay EOT crane, reducing machine idle time by 20–30% in documented production studies.

• CNC machining centres and VMC/HMC stations – loading castings, forgings, and billet stock up to 1 Ton directly into machine fixtures
• Press shop die loading – picking dies from trolleys and centring them on press beds (500 kg to 2 Ton capacity jib cranes)
• Welding and fabrication bays in Pune, Ahmedabad, and Vadodara – positioning weldments and assemblies for tack-welding and inspection
• Toolroom and metrology labs – handling heavy fixtures, gauge masters, and inspection jigs (250 kg to 500 kg range)
• Assembly lines in auto component plants – sub-assembly positioning at ergonomic work heights with programmable hoist stops
• Pharmaceutical reactor vessel servicing in Hyderabad and Bangalore – SS 304 jib cranes for manhole cover removal and vessel internal access
• Loading docks and packaging lines in Noida, Gurugram, and Faridabad – carton and product transfer between conveyors and trucks
• Cold storage and food processing units in Gujarat and Rajasthan – stainless steel jib cranes for hygienic material handling

Wall-Mounted vs. Column-Mounted Jib Crane – Which Configuration Fits Your Layout?

Engineering procurement teams in Ahmedabad’s Vatva and Kathwada industrial estates and in Pune’s Ranjangaon MIDC often need guidance on choosing between a wall-mounted jib crane and a free-standing column-mounted jib crane. The choice depends entirely on available floor space and wall load capacity. A wall-mounted jib crane requires a reinforced RCC or structural steel column wall capable of absorbing a cantilevered moment load — for a 1 Ton jib crane with a 4-metre boom, this moment is approximately 40 kN·m. Floor space is not consumed. A free-standing column-mounted jib crane uses a dedicated 350–450 mm diameter MS pipe or box column embedded in a concrete footing — the footprint is 600 mm × 600 mm minimum — but can be positioned anywhere on the floor plan without wall dependency. SRE‘s engineering team provides footing design calculations with every column-mounted jib crane quotation.

Technical Specifications of SRE Jib Cranes for Industrial Buyers in Pune and Ahmedabad

A recurring problem that maintenance engineers in Pune, Indore, and Bhopal report is jib crane boom sag — where the horizontal boom gradually deflects downward over 12–18 months due to undersized structural sections. A properly designed 1 Ton jib crane boom for a 5-metre span requires a minimum ISMB 200 or equivalent WF section with the boom braced to the upper mast by a tie-rod — yielding a maximum tip deflection of under 5 mm at full rated load. SRE Material Handling Equipment Pvt. Ltd. fabricates jib crane structures in IS:2062 Grade B mild steel with hot-rolled sections — not thin-wall hollow sections — ensuring structural integrity through 20+ years of factory use. The slewing mechanism uses a tapered roller bearing assembly rated for 1,500 N·m moment capacity on 1 Ton models, with sealed bearing housings requiring zero maintenance for 3 years under normal factory duty.

For the hoist component, SRE integrates Yale, Kito, or equivalent FEM M3/M4 class electric chain hoists with pendant control — offering load speeds of 2–8 m/min (single speed) or dual-speed (4/1 m/min ratio) for precision lowering into machine fixtures. Chain compliance is to IS:3569 or DIN 766 Grade 80, with a minimum breaking load of 4× SWL. The pendant control is IP-55 rated with a positive-action emergency stop button — a mandatory requirement under the Factories Act, 1948 for all lifting appliances in registered factories. For clients in Mangalore, Hyderabad, and Chennai requiring stainless steel construction for humid or food-grade environments, SS 304 or SS 316L boom and hoist options are available from the Ahmedabad facility.

Bulk Jib Crane Supply for EPC Projects Across Gujarat, Rajasthan, and Northern India

EPC contractors setting up greenfield auto, pharma, or engineering plants in Jaipur, Noida, Faridabad, Rohtak, or Ambala frequently need 20–50 jib crane units as part of a comprehensive workstation lifting package alongside overhead EOT cranes. Managing multiple vendors for EOT cranes, jib cranes, and chain hoists creates coordination complexity and documentation gaps. SRE Material Handling Equipment Pvt. Ltd. serves as a single-source supplier for complete material handling lifting systems — covering overhead EOT cranes, jib cranes, chain hoists, and mobile floor cranes — from its Ahmedabad manufacturing facility with a combined production capacity of 25–30 lifting equipment units per month. This single-source capability simplifies commissioning, warranty management, and spare parts procurement for plant heads in Gurugram, Bhopal, Indore, and Bhavnagar.

For buyers in Kutch, Himmatnagar, Kalol, Gandhinagar, Mahesana, and Chattral industrial zones within Gujarat, SRE‘s proximity in Ahmedabad means 3–5 day delivery on standard jib crane models and 3–4 week lead time on custom configurations. All units are pre-assembled and tested at the factory before dispatch, with load test certificates provided. Complementary solutions include electric stackers for pallet handling between jib crane service areas, and chain block and hoist systems for auxiliary suspension points. Refer to the ISO 9001:2015 quality system standard for what certified manufacturing processes entail when evaluating jib crane suppliers.

Buying Guide – How to Specify the Right Jib Crane for Your Pune Factory or Workshop

Purchase managers and plant engineers in Pune, Bangalore, and Vadodara evaluating jib crane specifications should follow a 5-parameter framework before finalising a purchase order. First: confirm the maximum SWL including hoist weight (a 500 kg SWL rating must accommodate both the load and the electric chain hoist weight, typically 35–50 kg for 500 kg class hoists). Second: define the exact boom length required — measured from the mast centre to the furthest hook travel point needed to serve the workstation. Third: confirm the slewing range needed — 270° for wall-mounted, 360° for free-standing column. Fourth: specify the hook travel height needed — minimum height from floor to hook in lowered position and maximum height when hoisted, to ensure both clearance from floor and sufficient lift above the machine fixture. Fifth: confirm the duty class — light factory duty (M3) or sustained production duty (M4–M5) — which determines bearing sizing, chain grade, and motor thermal rating. SRE Material Handling Equipment Pvt. Ltd. provides a free site consultation and equipment specification advisory for bulk enquiries from Pune, Maharashtra, and surrounding states. Also explore the full range of mobile floor cranes and goods lifts for complementary material handling needs. Refer to Bureau of Indian Standards IS:3177 for jib crane design requirements applicable to Indian factory installations.
