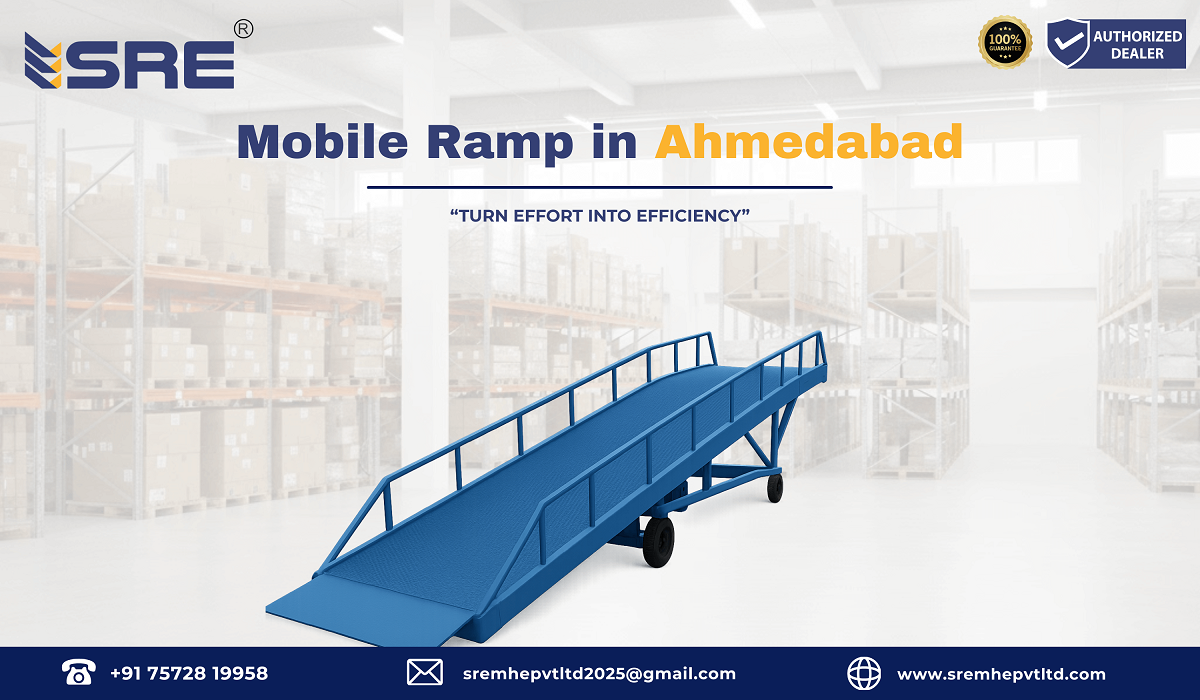

Mobile Ramp in Ahmedabad

Logistics managers and warehouse heads across Ahmedabad, Pune, and Bangalore deal with a recurring problem every single day — trucks and trailers arrive at loading bays with varying floor heights, and the gap between the vehicle deck and the warehouse floor creates a dangerous transition zone that slows loading cycles and risks both personnel and goods. Without the right Mobile Ramp, forklifts either can’t access the vehicle safely or operators manually bridge the gap with improvised planks — a practice that violates every factory safety protocol and increases the risk of load drops and injuries. The SRE Mobile Ramp (SKU: SRE162), rated to 10 Ton capacity and available up to 1.6 meters in height, is purpose-engineered to eliminate this daily hazard and bring controlled, forklift-compatible loading access to any truck, trailer, or container at any dock — without permanent civil construction.

How Mobile Ramp Solves Loading Dock Challenges in Warehouses Across Ahmedabad and Gujarat

Forklift-Compatible Truck Loading Applications of Hydraulic Mobile Loading Ramp

In high-volume distribution centers in Vatva, Kathwada, and Ghandhidham, the daily loading schedule involves 20 to 50 trucks at varying deck heights — from 900 mm for small LCV vans up to 1400 mm for large trailers. A fixed dock leveler only works at one specific height range and requires permanent civil infrastructure. The Mobile Ramp solves this by providing a self-contained, repositionable inclined access platform that forklifts rated up to 3 Ton can drive directly into the truck. The ramp surface is fabricated from IS 2062 MS steel with a checkered plate anti-slip surface that provides traction even under wet loading bay conditions. At a rated capacity of 10 Ton, it safely handles fully loaded forklifts, pallet jacks, and their combined cargo weight in a single crossing — reducing loading cycle time from 25 minutes (manual handling) to under 8 minutes per truck at high-volume Gujarat distribution facilities.

Container Stuffing and Unstuffing in Export Logistics Hubs at Kutch and Bhavnagar

Export-oriented factories and logistics hubs in Kutch, Bhavnagar, and Mundra port hinterland face an acute operational problem: ISO shipping containers sit at a fixed floor height of 1,150 mm to 1,350 mm, while warehouse floors are typically at ground level with zero dock infrastructure. Manual container stuffing using ramps with low-quality steel or improvised materials creates collapse risk and slows container turnaround time severely. The SRE Mobile Ramp rated to 10 Ton at 1.6 meters height provides a purpose-built engineered solution — the hydraulic adjustability of approach angle means the ramp matches the exact container floor height, allowing a 1.5 Ton capacity electric stacker or forklift to drive straight into the container and place pallets with precision. For export shippers in Ghandhidham and Kutch, this translates directly to faster container turnaround, lower demurrage costs, and improved worker safety.

Key Applications of the Mobile Ramp:

• Truck and trailer loading/unloading — forklift access for 1–3 Ton forklifts at truck deck heights of 900 mm to 1,600 mm
• Container stuffing and de-stuffing — export-import logistics in Ahmedabad, Kutch, Bhavnagar, and port-adjacent warehouses
• Cold storage loading docks — sealed loading access in refrigerated warehouses in Pune and Bangalore
• Automotive plant logistics — vehicle component loading on car carriers and flat-beds in Pune, Chennai, and Manglore
• Pharma and chemical distribution — controlled pallet loading for regulated goods in Hyderabad and Ahmedabad pharma zones
• FMCG and retail distribution centers — high-frequency truck loading in Noida, Faridabad, and Gurugram logistics parks
• Steel and heavy engineering dispatch yards — heavy goods loading in Rajkot, Bhavnagar, and Vatva industrial zones
• Food processing and agricultural commodities — bulk sack and pallet loading in Mahesana and Kalol agro-industrial parks
• E-commerce mega-fulfillment centers — rapid dock turn in Bangalore, Hyderabad, and Chennai distribution hubs

Critical Technical Features of Mobile Loading Ramp That Purchase Managers in Pune and Rajasthan Must Evaluate Before Sourcing

When procurement heads in Jaipur, Udaipur, and Indore compare Mobile Ramp suppliers, the specs that matter most are structural steel grade, weld quality, and the stability system — because a ramp failure under a loaded forklift is a catastrophic event. The SRE Mobile Ramp (SKU: SRE162) is fabricated entirely from IS 2062 Grade B MS structural steel with a minimum yield strength of 250 MPa, chosen specifically because it maintains structural integrity under dynamic forklift loading cycles — not just static dead load. The main ramp beams are box-section profiles with a wall thickness of 8 mm minimum, TIG and MIG welded by certified welders to ensure full-penetration welds at all load-bearing joints. The ramp surface uses 5 mm thick MS chequered plate for anti-slip traction, with all edges de-burred and radiused to prevent tyre damage on forklift rubber tyres during repeated daily use.

Stability during forklift crossing is the most critical safety parameter. The SRE Mobile Ramp uses a hydraulic rear leg support system that self-locks at the set height, preventing ramp roll-back when the forklift drives up. The ramp is also equipped with four 250 mm diameter solid rubber swivel castors — two with lockable brakes — so it can be repositioned between truck bays by a single operator without any mechanical assistance. The approach angle is adjustable via the hydraulic system across a range that accommodates truck bed heights from 900 mm to 1,600 mm — covering virtually every commercial truck variant operating in India today. Load testing is performed at 150% of rated capacity (i.e., 15 Ton test load on a 10 Ton rated unit) before dispatch, with a signed factory test certificate provided. Reference safety standards for such equipment are outlined by OSHA dock safety standards as an international benchmark.

Mobile Ramp vs. Fixed Dock Leveler — What Logistics Heads in Chennai, Hyderabad, and Noida Should Consider

A fixed dock leveler requires concrete pit construction, civil permits, and installation time of 5–7 days per bay — a significant investment that only works at one permanently fixed location. For logistics parks in Noida, Faridabad, Gurugram, and Chennai where dock bay configurations change with tenant operations, a Mobile Ramp offers unmatched flexibility: it serves multiple truck bays as needed, requires no civil work, and can be relocated by a single operator within 5 minutes. The SRE Mobile Ramp at ₹4,25,000 (ex-works Ahmedabad) delivers a 10 Ton capacity rating that covers 95% of Indian commercial vehicle fleet configurations without additional investment. For factory owners in Bhopal and Indore who have only 2–3 loading bays but handle 15–20 trucks per day, a single mobile ramp shared across bays delivers the same throughput as two dedicated fixed levelers at a fraction of the infrastructure cost. For full loading station solutions, pairing with a Mobile Scissor Lift Table gives operators complete height control at both truck and warehouse floor level.

SRE Material Handling Equipment Pvt. Ltd., an ISO 9001:2015 certified manufacturer registered under MSME and the Make in India initiative, fabricates every Mobile Ramp unit at its Ahmedabad, Gujarat manufacturing facility with controlled welding procedures, raw material traceability, and documented final inspection records. Production capacity supports regular bulk orders from logistics companies, warehouse developers, and industrial plant operators across Rajasthan, Maharashtra, Tamil Nadu, Karnataka, and Delhi-NCR. Delivery timelines for standard units are 15–20 working days for single-unit orders, and 30–35 working days for multi-unit bulk orders. For procurement teams in Kutch, Bhavnagar, Himmatnagar, and Chattral, ex-Gujarat dispatch reduces freight cost and transit risk. You can also explore complementary lifting solutions in our Dock Leveler product range.

Why Warehouse Managers in Bangalore, Manglore, and Ambala Prefer SRE Material Handling Equipment Pvt. Ltd. for Industrial Loading Ramp Supply

Reliability of supply and transparency of specification are the two things that distinguish a genuine industrial equipment manufacturer from a trader reselling assembled components. SRE Material Handling Equipment Pvt. Ltd. provides full traceability for every unit: mill test certificates for IS 2062 Grade B MS steel, hydraulic cylinder pressure test records, weld inspection reports, and a final load test certificate at 150% of rated capacity — all packaged with the delivered unit. Warehouse developers and 3PL operators in Bangalore, Manglore, Ambala, and Rohtak who have tendered for loading ramp supply consistently report that SRE’s documentation package satisfies their insurance and safety audit requirements without additional third-party testing costs. For reference on industrial standards applicable to dock ramps in India, BIS standards for lifting equipment provide the foundational specification framework. The company’s ISO 9001:2015 certification ensures that quality processes — incoming inspection, in-process checks, and final testing — are consistently applied across every production batch, regardless of order size.

A senior logistics manager at a pan-India FMCG distribution company operating out of Ahmedabad noted: “We deployed eight SRE Mobile Ramps across our Gujarat distribution network — in Vatva, Kathwada, and Kalol. In 18 months of daily multi-shift use, all eight units have performed without any structural issue. The hydraulic adjustment mechanism is smooth and the ramp’s stability on truck approach has been flawless. We saved ₹12 lakhs compared to getting fixed dock levelers installed at those locations.” This field data from real operations validates what the specification sheet promises. For full loading bay product options, visit our Goods Lift product page, and to discuss your specific ramp requirement, contact our engineering team directly for a site-specific recommendation.

Frequently Asked Questions — Mobile Ramp in Ahmedabad and Across India
