500 kg – 900 mm (All Size Available)
Rs. 26,000
(Taxes to be paid extra)
Brand: SRE
Min Order Qty: 1

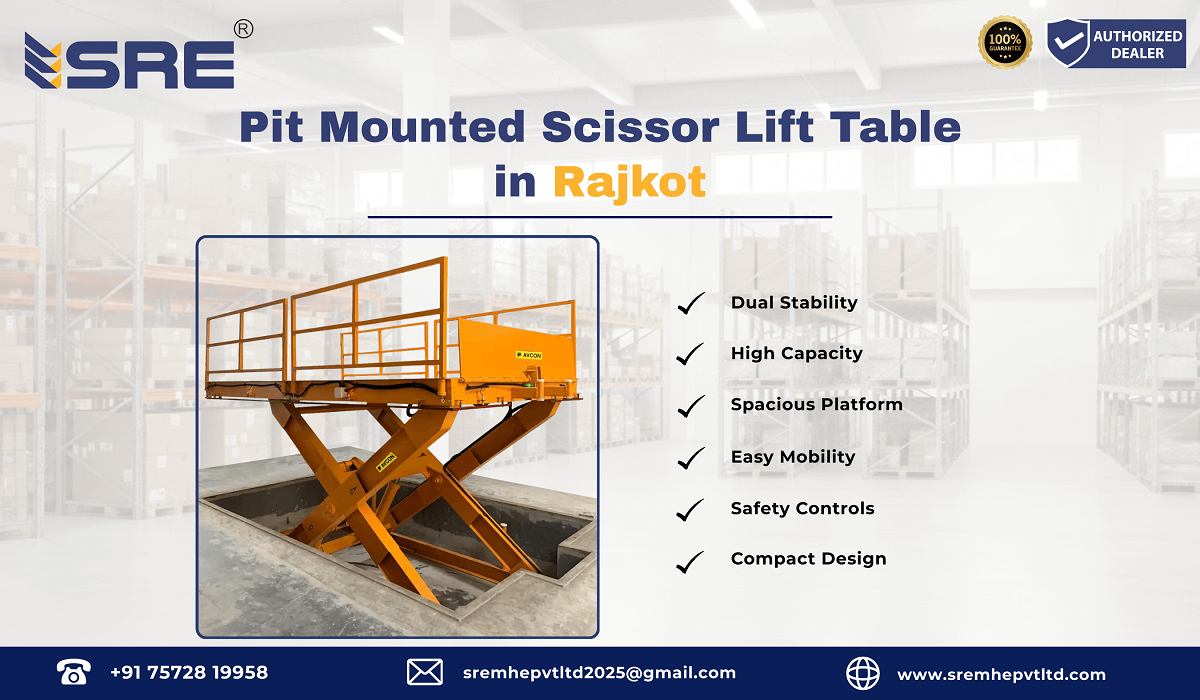

Pit Mounted Scissor Lift Table in Rajkot — Applications, Key Features & Flush-Floor Integration Guide
Assembly and dispatch operations in Rajkot’s engineering workshops and warehouses often require a height-adjustable work surface that sits at floor level when not in use — not above it — so fork trucks, pallet trucks, and wheeled equipment can cross the work area freely when the lift table is not activated. A standard surface-mounted scissor lift table creates a permanent floor obstruction that disrupts material flow and requires workers to step over or around it. The flush-floor solution that eliminates this obstruction while providing the same height adjustment capability is the Pit Mounted Scissor Lift Table in Rajkot. SRE Material Handling Equipment Pvt. Ltd., an ISO 9001:2015 certified manufacturer, supplies pit mounted scissor lift tables at Rs. 26,000 with 500 kg capacity and 900 mm maximum lift height — for assembly, loading dock, and die setting applications across Rajkot, Gujarat, and PAN India.
Why Pit Mounted Scissor Lift Tables Are Essential for Uninterrupted Material Flow at Rajkot, Ahmedabad, and Gujarat Manufacturing Plants
The fundamental difference between a pit mounted scissor lift table and a surface-mounted variant is its relationship to the production floor plane. In the lowered position, the pit mounted version sits flush with — or slightly below — the surrounding floor surface, creating zero obstruction for floor traffic. This is critical in facilities where the same area serves multiple functions: an assembly station that doubles as a through route for pallet trucks, or a loading dock position that needs to be clear when vehicles are not present. The SRE pit mounted scissor lift table at Rs. 26,000 (the same price as the surface-mounted version) provides this flush-floor advantage without additional cost — the difference is only the civil pit work required during installation, for which SRE Material Handling Equipment Pvt. Ltd. provides a detailed drawing pack.
Technical specifications of the SRE pit mounted scissor lift table: 500 kg rated capacity, maximum lift height 900 mm, platform dimensions 820 mm × 500 mm standard (custom sizes to 2000 mm × 3000 mm). Frame: IS 2062 MS steel, 8 mm base plate. Hydraulic oil: ISO VG 46. Seals: nitrile rated 60°C. Platform: 5 mm chequered plate. Safety: mechanical lock pin + spring-loaded descent valve. Load tested at 125% rated capacity. Finish: 2-coat epoxy powder coat. Civil pit drawing pack issued within 3 working days of order confirmation.
Pit Mounted vs. Surface Mounted Scissor Lift Table — Selecting the Right Configuration for Rajkot Operations
Purchase managers in Rajkot, Vadodara, Bhavnagar, and Kutch choosing between pit mounted and surface mounted scissor lift tables should base the decision on the floor traffic requirements at the table position. If pallet trucks, fork trucks, or wheeled equipment need to cross the table area during non-use periods — choose pit mounted. If the table occupies a dedicated station with no through-traffic requirement — surface mounted at the same price is equally effective and avoids the civil pit construction cost and lead time. The SRE pit mounted scissor lift table is the correct specification for loading dock positions, through-aisle assembly stations, and press shop die setting areas where floor traffic continuity is essential.
| Parameter | Pit Mounted Scissor Lift (SRE) | Surface Mounted Scissor Lift (SRE) |
|---|---|---|
| Load Capacity | 500 kg | 500 kg |
| Max Lift Height | 900 mm | 900 mm |
| Floor Profile (Lowered) | Flush with floor — zero obstruction | Platform sits 250 mm above floor |
| Floor Traffic | Pallet trucks pass freely when lowered | Floor obstacle — traffic rerouted |
| Installation | Civil pit required (drawing pack provided) | Bolt anchor to floor surface |
| Starting Price (SRE) | Rs. 26,000 | Rs. 26,000 |
Get a Quote for Pit Mounted Scissor Lift Tables — Rajkot, Gujarat & PAN India
Key Applications of Pit Mounted Scissor Lift Tables Across Rajkot, Gujarat, and PAN India Operations
SRE Material Handling Equipment Pvt. Ltd., MSME and Make in India certified, has supplied pit mounted scissor lift tables to automotive, pharma, FMCG, steel fabrication, and logistics operations in Rajkot, Ahmedabad, Pune, Noida, and Bangalore.
- Loading Dock Stations (Rajkot, Gujarat): Flush-floor loading bay position — pallet trucks cross freely when trucks are absent; lift activates when a truck docks for height-matched loading.
- Through-Aisle Assembly Stations (Ahmedabad): Assembly position in a shared aisle — lift flush when not in use, raised during assembly operations.
- Die Setting Stations (Rajkot Press Shops): Die positioning below press bed level — flush floor allows die trolley approach from any direction.
- Vehicle Maintenance Pits (Gujarat Workshops): Raising vehicle components to underside inspection and service height in vehicle maintenance bays.
- Pharmaceutical Cleanrooms (Hyderabad, Pune): Flush-floor dispensing station — SS 304 platform variant for GMP compliance.
- Cold Store Dock (Bangalore, Chennai): Flush-floor dock position in cold stores — pallet trucks run freely over the table when not loading.
- FMCG Warehouse Dock (Noida, Faridabad): High-throughput dock with constant pallet truck movement — pit mounted table provides height adjustment without disrupting dock traffic flow.
- Automotive Sub-Assembly (Chakan, Pune): Flush-floor ergonomic workstation on a through-aisle — operators raise to working height at shift start, lower during material delivery cycles.
Civil Pit Specifications for Pit Mounted Scissor Lift Tables at Rajkot and Gujarat Facilities
Facility engineers in Rajkot, Ghandhidham, Mahesana, Himmatnagar, and Kalol planning pit mounted scissor lift table installations need the civil pit design before construction begins. SRE Material Handling Equipment Pvt. Ltd. provides a full civil drawing pack within 3 working days of order confirmation — pit dimensions, reinforcement pattern, anchor channel positions, drainage requirements, and equipment mounting specifications. Standard pit for the 500 kg / 900 mm model is approximately 900 mm wide × 600 mm long × 300–400 mm deep (varies with platform size). The drawing pack enables civil construction to proceed immediately for Rajkot buyers without independent engineering interpretation.
Complementary Products and Supply Details from SRE Material Handling Equipment Pvt. Ltd.
Delivery of the SRE pit mounted scissor lift table to Rajkot: 10–15 working days. Civil drawing pack: 3 working days. Complementary: Pallet Truck for material delivery to the pit mounted table, Dock Leveler for permanent dock bay installations, and Mobile Ramp for non-permanent vehicle access. Blog guides: Pit Mounted Scissor Lift Table Mumbai, Hydraulic Stacker Pune, and Magnet Lifter Pune.
Get your flush-floor workstation configured — contact SRE for a project quote today.
Frequently Asked Questions — Pit Mounted Scissor Lift Table in Rajkot
What is the capacity, lift height, and price of the SRE Pit Mounted Scissor Lift Table for Rajkot and Gujarat factory installations?
The SRE pit mounted scissor lift table in Rajkot has 500 kg rated capacity, 900 mm maximum lift height, and platform 820 mm × 500 mm standard (custom to 2000 mm × 3000 mm). Frame: IS 2062 MS steel, 8 mm plate. Seals: nitrile 60°C. Load tested at 125%. Starting price: Rs. 26,000 (taxes extra). SRE Material Handling Equipment Pvt. Ltd., ISO 9001:2015 certified. Civil drawing pack issued within 3 working days. Delivery to Rajkot: 10–15 working days.
Why is a Pit Mounted Scissor Lift Table better than a Surface Mounted version for through-aisle production positions in Rajkot and Gujarat?
In Rajkot and Gujarat production facilities where pallet trucks, fork trucks, or other wheeled equipment need to cross the lift table position during non-use periods, the pit mounted scissor lift table is essential — in the lowered position it sits flush with the floor, allowing unrestricted floor traffic. A surface mounted table sits 250 mm above floor level permanently — creating a floor obstacle that disrupts material flow throughout the shift, not just during assembly operations.
What civil pit dimensions are required for a Pit Mounted Scissor Lift Table installation at Rajkot and Gujarat factory floors?
For the standard SRE pit mounted scissor lift table (500 kg / 900 mm), the typical pit is approximately 900 mm wide × 600 mm long × 300–400 mm deep in reinforced concrete (varies with platform size). SRE Material Handling Equipment Pvt. Ltd. provides a full civil drawing pack — pit dimensions, reinforcement, anchor positions, and drainage — within 3 working days of order confirmation. This enables civil construction to begin immediately for Rajkot factory buyers.
Can OEM buyers in Rajkot and Gujarat order Pit Mounted Scissor Lift Tables with custom platform sizes and SS 304 surfaces?
SRE Material Handling Equipment Pvt. Ltd. accepts OEM orders for pit mounted scissor lift tables with custom platform sizes up to 2000 mm × 3000 mm, SS 304 stainless platforms for pharma/food GMP use, and heavy-duty load ratings up to 3000 kg. MSME and Make in India certified — qualifies for government procurement in Rajkot, Gujarat, and Maharashtra. Standard bulk delivery: 15–21 working days. Contact for project quotation.
Rajkot ke loading dock aur assembly station ke liye Pit Mounted Scissor Lift Table ki civil pit drawing kab milti hai?
Rajkot ke loading dock aur assembly stations ke liye pit mounted scissor lift table ki civil drawing pack order confirmation ke 3 working days ke andar issue hoti hai — civil contractor immediately construction start kar sakta hai. Equipment delivery 10–15 working days mein hoti hai. Starting price Rs. 26,000 (taxes extra). SRE Material Handling Equipment Pvt. Ltd. direct dispatch Ahmedabad se karta hai with 125% load test documentation.
Ahmedabad aur Gujarat ke FMCG warehouse ke liye Pit Mounted ya Surface Mounted Scissor Lift Table kaunsa best hai?
Ahmedabad aur Gujarat ke FMCG warehouses mein jahan dock positions par pallet truck constantly move karta hai, wahan pit mounted scissor lift table correct choice hai — pallet truck freely cross karta hai jab table lowered ho. Agar station dedicated hai aur koi floor traffic nahi hai, toh surface mounted model (same price Rs. 26,000) equally effective hai aur civil pit construction ki zaroorat nahi padti. Vatva, Kathwada, aur Kalol ke high-throughput docks mein pit mounted model standard hai.
Kya Pit Mounted Scissor Lift Table ke hydraulic spare parts aur service Rajkot aur Gujarat mein available hai?
Haan — SRE Material Handling Equipment Pvt. Ltd. ke pit mounted scissor lift tables ke liye hydraulic seal kits, safety lock assemblies, platform surface plates, aur foot pump assemblies spare parts Ahmedabad warehouse se available hain. Rajkot aur Gujarat ke buyers ke liye next-day dispatch hota hai. Seal inspection har 6 mahine recommended hai. AMC (Annual Maintenance Contract) bhi available hai fleet installations ke liye across Maharashtra aur Gujarat.
Standards References
Quality: ISO 9001:2015. Steel: BIS — IS 2062. Factory safety: Factories Act, 1948.
