Description

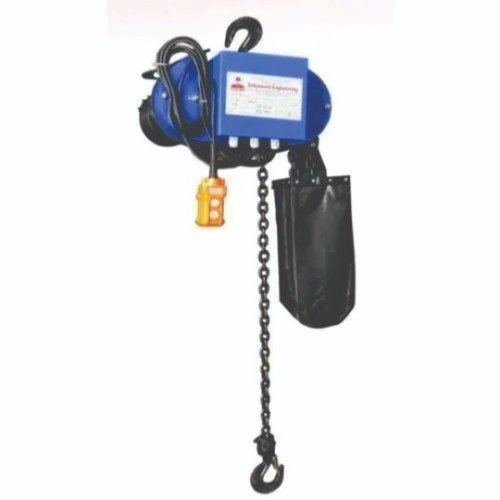

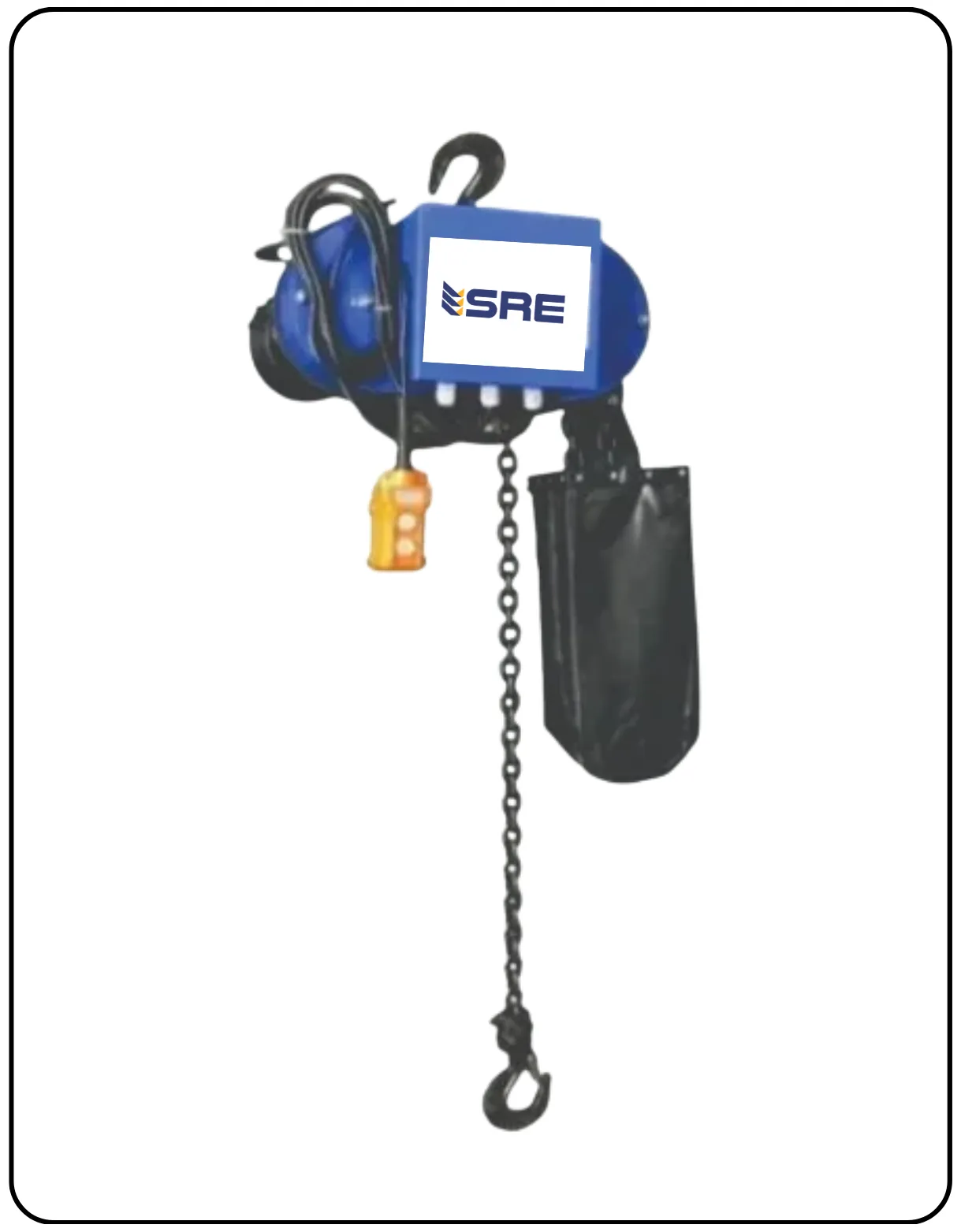

Designed for durability and safety, electric chain hoists are typically constructed with high-quality steel or alloy components to withstand heavy-duty use. They feature advanced safety mechanisms, including overload protection, emergency stop functions, and limit switches, ensuring secure operation even under challenging conditions. The hoists also come with adjustable lifting speeds, smooth operation, and user-friendly controls, making them ideal for tasks that require precision. Whether mounted on an overhead crane system or used as a standalone unit, an electric chain hoist enhances productivity, safety, and reliability in environments where heavy lifting is required.
| TECHNICAL SPECIFICATION | ||

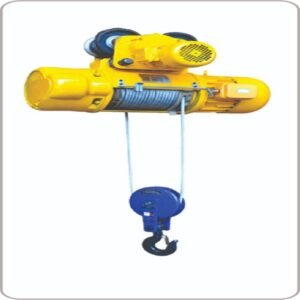

| Description | 2T 2Fall 6 Mtr 4 Contactor panel Electric Wire Rope Hoist | |
| Technical | Capacity | 2T |
| Suitable Girder Size | 250×125 Or 300×140 | |
| Span | Client To Conform | |
| Height Of Lift | 6 Mtr Standard | |
| L.T Length | Client To Conform | |
| Standard | IS:3177 & IS:807 | |
| Class & Duty | M-4 Heavy Duty | |
| Location | In-Door | |
| Amb. Temp. | 45° Degree | |
| Control Voltage | 110 VA | |
| Supply Voltage | 415 V,3 Ø ,A.C Supply | |
| Operation | Flore Operated Thro’ Pendent Push Button | |
| Area Classification | Non-Harzadious (Safe-Area) | |
| Hoisting Unit | H.T Speed | 3.5 TO 4 MPM |
| H.T Motor Rating | 3HP/1440 RPM Heavy Duty | |
| H.T Motor Type | Sq.Case Crane Duty Motor 150 Start/Stop,40% CDF,Class F Insulation(Stallion/Neptune/DivineMake) | |
| H.T Brake | Shayam make / Gmac | |
| H.T.Gear Box | Our Make | |
| Bearing | HCH/NBC/KYK/KKK | |
| C.T Unit | C.T Speed | 12-14 MPM |
| C.T Motor Rating | 0.5 HP/1440 RPM | |
| C.T Motor Type | Sq.Case Crane Duty Motor 150 Start/Stop,40% CDF,Class F Insulation (Stallion/Neptune/DivineMake) | |
| C.T Brake | NA ( Limit Switch- NA) | |
| C.T Gear Box | Our Make | |
| Wire Rope | Rope Dia | 10MM |
| No Of Falls | 2Falls | |
| Rope Make | UshaMatrin / Bedmutha/Vardhman | |
| Tensile Strength | 1770 N/mm2 | |
| Rope Drum | Febricated From M.S Seamles Type | |
| Hook | Hook | “C” Shank Hook Forged As Per IS 3815 Standard |
| Wheels | C.T Wheels | 4 Nos |
| Wheels Assembly | En-9 Material As Per IS:1865 | |
| Electricals | Control Panel Make | Our Make-SCHNEIDER-4 Contactor Panel With Transformers,Limit Switch M.S Fabrication Dust Proof Body GreayColour Power Coating |
| Limit Switch | 1 no’s each at HT motion | |
| Pendant Push Buttun | Jigo Make | |
| H.T Limit switch | Shree Make | |
| Cables | Nilaang/RR/Polycab Make | |
| Pinion Material | EN-9 | |
| Gear Material | EN-9 | |
| Side Support Plate | 8MM Laser Cutting | |
| Unit Gear Plate | 16MM Laser Cutting | |
| Warranty | One Year Only Mechanical Parts ,No Electrical Parts | |
