Description

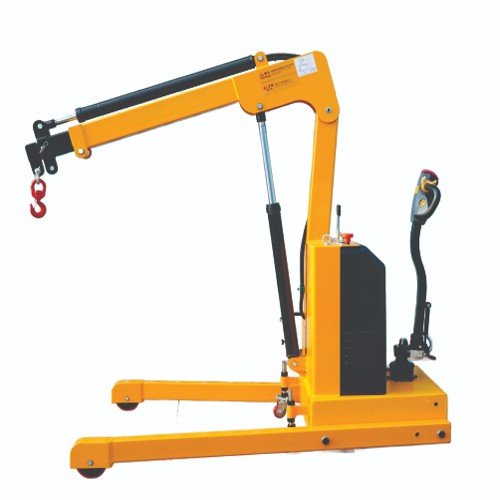

Advanced models feature intuitive controls that allow operators to fine-tune lift height and boom positioning with ease. Safety is a priority, with features such as overload protection, emergency stop buttons, and locking systems to ensure the crane remains stable and secure during operation. The fully battery-powered design eliminates manual cranking or pumping, minimizing physical strain and increasing productivity.
This type of crane is ideal for tasks such as machinery installation, engine repairs, and material handling in a variety of industrial and commercial settings. The fully battery-operated floor crane provides an ergonomic, reliable, and efficient solution for handling heavy loads with minimal effort, ensuring both safety and improved operational effectiveness.
Specification | ||||||||
YLE01 | Unit | A | B | C | D | E | F | |
0 degree | Length | Mm | 1440 | 2300 | 2500 | 2700 | 2900 | 3100 |
Rated Load | kg | 1000 | 342 | 290 | 250 | 220 | 200 | |
40 degree | Length | Mm | 1004 | 1638 | 1787 | 1935 | 2083 | 2231 |
Rated Load | kg | 1100 | 565 | 430 | 345 | 290 | 250 | |
Inner size of Legs | mm | 985 | ||||||
Outer Size of Legs | Mm | 1170 | ||||||
Movement | Up-down and left right electric | |||||||
Net Weight | kg | 568 |
