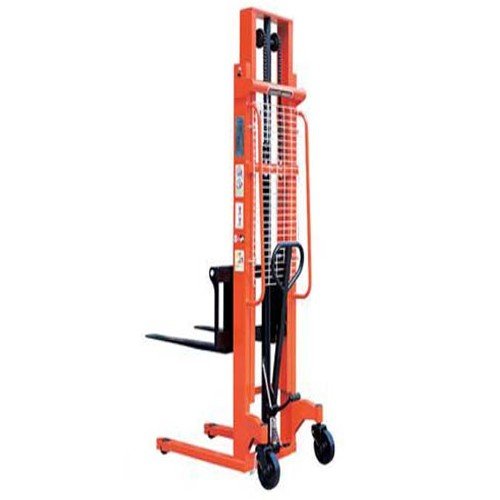

Hydraulic Stacker 3 Meter

Shree Ram Enterprise is a leading 3-meter lifting height hydraulic stacker manufacturer and supplier in India. A hydraulic stacker with a 3-meter lifting height is a highly efficient and versatile piece of material handling equipment, designed to lift, transport, and stack heavy loads with precision and ease. Capable of lifting goods up to 3 meters in height, this stacker is ideal for use in industrial environments such as warehouses, manufacturing plants, and distribution centers, where the handling of bulky or heavy items is common.

The stacker is equipped with a robust hydraulic system that allows smooth, controlled lifting and lowering of loads. Operated by a hand pump or lever, the hydraulic mechanism ensures minimal physical exertion from the operator while maintaining precise control over the load. The stacker’s frame is built with high-strength materials, providing durability and stability even under heavy loads. Additionally, it features adjustable forks or platforms that can accommodate various load sizes, making it adaptable to different material handling tasks.

Description

Safety is a key feature, with the stacker incorporating overload protection, secure braking systems, and stabilizing wheels or casters to prevent tipping and ensure smooth operation. Its compact design makes it highly maneuverable, ideal for navigating narrow aisles and tight spaces within crowded facilities. The ergonomic controls further enhance ease of use, while the durable construction ensures long-term reliability and minimal maintenance.

Overall, this 3-meter hydraulic stacker is a valuable tool that improves productivity, enhances workplace safety, and ensures efficient material handling in environments requiring high vertical lifting capabilities.

Capacity	Kg	1500
Capacity at top Height	Kg	600- 700
Lowered Height	mm	80-90
Load center distance	mm	460
Max. Fork Height	mm	3000
Over All Height	mm	3550
Close Height	mm	2070
Fork width out to out	Mm	850
Fork width in to in	mm	540
Thickness	mm	150+55
Fork length	Mm	1150
Leg out to out	Mm	490
Leg in to in	Mm	290
Leg length	Mm	1150
Piston dia	mm	35
Wheel caster nylon	(break2 nose)Mm	180×50(7×2”)
Leg Wheel	(2 nose)Mm	50×90
Net Weight	Kg	–
