Reel Pallet Truck

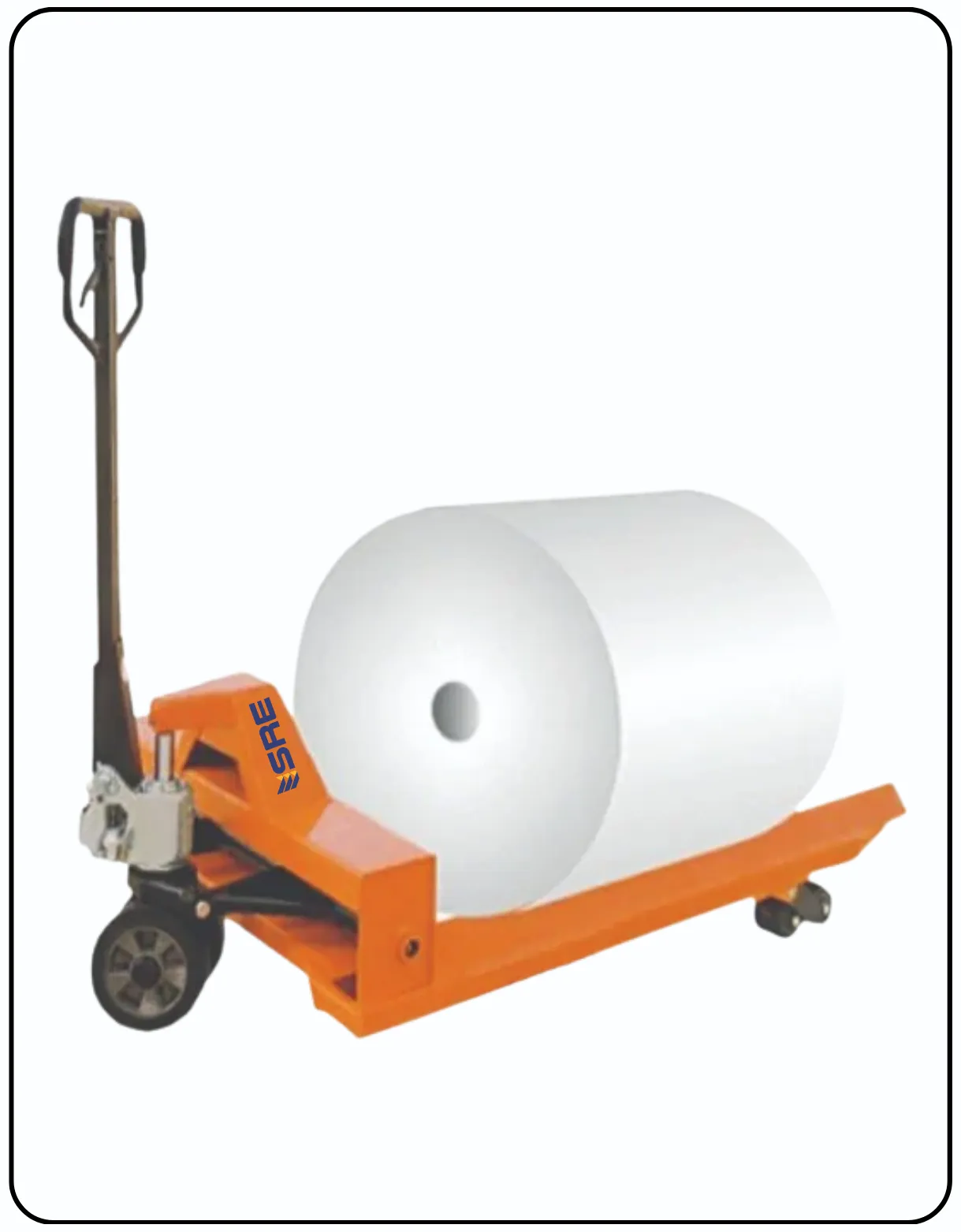

Paper mills, printing facilities, textile plants, and cable manufacturers across Ahmedabad, Pune, and Bangalore handle large cylindrical reels — paper reels, cable drums, wire coils, and fabric rolls — that standard flat-fork pallet jacks cannot grip or transport safely. Rolling reels across the floor by hand is a leading cause of reel edge damage, core crushing, and operator foot injury. The Reel Pallet Truck (SKU: SRE 104) from SRE Material Handling Equipment Pvt. Ltd. solves this with purpose-engineered reel cradle arms — a 3-ton rated hydraulic pallet truck designed specifically for cylindrical reels of 900 to 1200 mm diameter, priced at Rs. 38,000 (taxes extra). It picks, transports, and positions reels without rolling, without edge contact damage, and without secondary lifting equipment.

Printing houses in Vadodara, Indore, and Hyderabad running web-offset and flexographic presses typically handle paper reels weighing 800 kg to 2,500 kg. Moving these by hand or with improvised flat forks creates consistent core damage — a crushed or deformed paper reel core causes web breaks at the press, halting production and wasting paper. The reel pallet truck’s curved IS 2062 Grade B MS steel cradle arms contact the reel body at two tangential points that distribute the load without applying concentrated point pressure to the reel core or edges. The 3,000 kg rated capacity covers the full range of commercial paper, cable, and textile reels used across Gujarat, Maharashtra, and Rajasthan industrial operations. SRE Material Handling Equipment Pvt. Ltd., an ISO 9001:2015 and MSME-certified manufacturer, load-tests every unit at 125% of rated capacity before dispatch from Ahmedabad.

Key Technical Specifications Of The Reel Pallet Truck For Paper, Cable, And Textile Industries In Gujarat And Maharashtra

Procurement managers in Vatva, Kathwada, and Kalol evaluating reel handling equipment frequently encounter flat-fork pallet jacks with V-block adapters — improvised solutions that contact the reel at only two narrow points, creating unacceptably high contact pressure on large-diameter reels that causes permanent surface deformation on finished paper or cable products. The SRE SRE 104 uses purpose-formed curved cradle arms with an adjustable spread to accommodate reel diameters from 900 mm to 1200 mm — the arm geometry is calculated to provide a contact arc length of approximately 200 mm per side, distributing load pressure to below the surface deformation threshold for standard commercial paper and cable reel materials.

Factory supervisors in Noida, Faridabad, and Gurugram running 24-hour printing or cable manufacturing operations need reel handling equipment that withstands continuous high-load cycling without hydraulic seal fatigue. The SRE reel pallet truck hydraulic system uses the same double-acting sealed cylinder as the heavy-duty hand pallet truck range — rated for a minimum of 600,000 pump cycles before seal replacement. The 210 mm diameter solid rubber drive wheels provide stable mobility on the coated concrete floors typical of paper mills and printing facilities in Bhopal, Rohtak, and Ambala, without floor marking that would contaminate paper reel storage areas.

Cradle Arm Geometry And Diameter Adjustment For Mixed Reel Fleets

Printing and converting facilities in Jaipur, Udaipur, and Bhavnagar frequently handle reels of different diameters on the same production floor — 900 mm reels for one press line and 1200 mm reels for another. A fixed-arm reel truck forces operators to swap vehicles or use improvised shimming for different reel sizes. The SRE SRE 104 cradle arms are mounted on an adjustable spread mechanism — the arm-to-arm centre distance is adjustable in the field to accommodate the full 900 to 1200 mm diameter range without tools. This single-truck coverage of the entire diameter range eliminates the need for multiple reel handling vehicles in mixed-reel production environments across Himmatnagar, Mahesana, and Chattral.

Hydraulic Pump And Load Control For Heavy Reel Operations

Cable plant managers in Bangalore, Chennai, and Mangalore moving fully wound 2,000–2,500 kg cable drums need a hydraulic system that raises the reel cleanly off the floor without rocking — a reel that shifts laterally during lift can slide off the cradle arms and create an uncontrolled drop event. The SRE reel pallet truck hydraulic pump is tuned for slow, progressive lift action — each pump stroke raises the cradle approximately 10 mm, allowing the operator to verify reel seating stability before committing to full lift height. The pressure-hold valve locks the cradle at any intermediate height, enabling repositioning checks before proceeding to transport height.

The reel pallet truck is the standard floor-level reel handling solution for any facility processing large cylindrical loads — paper reels, cable drums, wire coils, fabric rolls, and rubber rolls — at weights up to 3,000 kg and diameters of 900 to 1200 mm. At Rs. 38,000, it is the most cost-efficient reel handling investment available for paper mills, printing houses, cable plants, and textile mills across Gujarat, Maharashtra, and Rajasthan. The adjustable cradle arm design ensures one truck handles the full diameter range encountered in most mixed-reel industrial operations without additional equipment.

• Paper Reel Press Infeed — Moving paper reels from storage to web-offset and flexo press infeed positions in printing facilities across Ahmedabad and Vadodara
• Cable Drum Production Floor Movement — Transporting fully wound cable drums between winding machines and dispatch staging in cable plants in Pune and Bangalore
• Wire Coil And Rod Coil Handling — Moving wire and rod coils between drawing, annealing, and dispatch stages in wire mills across Faridabad and Noida
• Textile Roll And Fabric Bolt Movement — Transporting heavy fabric rolls between dyeing, finishing, and packing sections in textile mills across Ahmedabad and Surat
• Rubber And Plastic Film Roll Handling — Moving large rubber and plastic film rolls between calendering and slitting in rubber and packaging film facilities in Hyderabad and Chennai
• Paper Mill Reel Storage And Retrieval — Organising finished paper reel storage and retrieving for dispatch in paper mills across Indore, Bhopal, and Rajasthan
• Printing Ink And Substrate Reel Management — Handling substrate and release liner reels in converting and label printing facilities in Jaipur and Udaipur
• Composite And GRP Pipe Roll Handling — Transporting composite pipe rolls and winding mandrels in GRP pipe manufacturing in Kutch, Bhavnagar, and Gandhidham

Purchase managers in Himmatnagar, Mahesana, and Chattral comparing the reel pallet truck against standard pallet jacks with V-block adapters and forklift reel attachments need structured parameter comparison before committing procurement decisions for reel handling fleet requirements.

Production managers in Vatva, Kalol, and Kathwada who have purchased improvised reel handling trucks from unverified suppliers consistently report cradle arm weld cracking at the arm-to-frame joint within 6 months of heavy-reel use — particularly when handling reels at the upper end of the rated diameter range where arm leverage is highest. SRE Material Handling Equipment Pvt. Ltd., an ISO 9001:2015-certified manufacturer established in 2011 by Mr. Gaurang Patel, designs the SRE 104 cradle arm-to-frame joints with gusseted weld geometry that distributes arm bending moment across a larger weld surface area — preventing the stress concentration at the root of the weld that causes premature fatigue cracking in simpler designs.

For bulk procurement by paper mills, cable plants, and printing groups in Bangalore, Chennai, and Hyderabad, SRE Material Handling Equipment Pvt. Ltd. delivers standard SRE 104 configurations within 7–10 working days. For reel storage operations also requiring reel stacking above 1.5 meters, explore the hydraulic stacker range. For chain sling and hook-based reel lifting, the chain block and hoist range from SRE provides the overhead lift complement. To complete the floor handling picture, the platform trolley range handles flat and boxed product movement alongside reel handling in the same facility. For fleet pricing and delivery confirmation, contact the SRE technical sales team directly.

Frequently Asked Questions — Reel Pallet Truck
