Wire Rope Hoist in Pune

250 – 500 kg x 20 Meter (All Size Available)

Rs. 7500

(Taxes to be paid extra)

Brand: SRE

SKU: SRE 173

Min Order Qty: 1

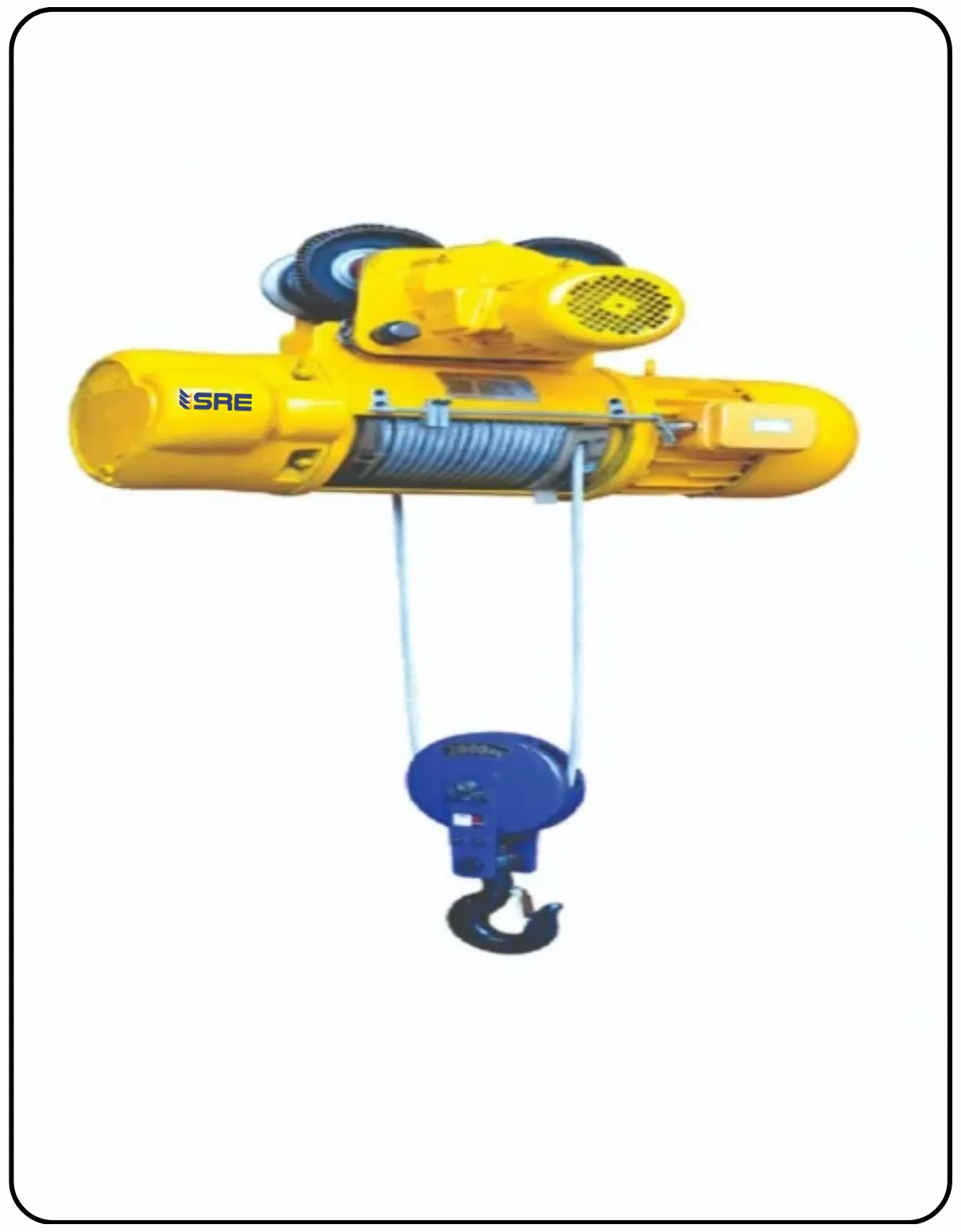

Production floors in Pune’s heavy engineering and auto-component sector face a persistent challenge — lifting loads of 250–500 kg vertically across heights of 10–20 metres using manual chain blocks is exhaustingly slow and inherently unsafe when done repeatedly across three shifts. Manual rigging at height increases operator fatigue and doubles the chance of load drop incidents. The purpose-built solution is an electric wire rope hoist in Pune — a motorised lifting device with galvanised or ungalvanised wire rope rated for 250 kg to 500 kg with a 20-metre rope length that eliminates manual fatigue entirely. Plants in Pune, Ahmedabad, and across Gujarat using these devices cut per-lift cycle time from 4–6 minutes to under 45 seconds.

Key Industrial Applications of Electric Wire Rope Hoist Across Pune, Maharashtra, and Gujarat

Workshop managers in Pune’s Bhosari and Chakan industrial areas deal with a range of lifting tasks — engine block removal from machining fixtures, steel coil lifting from warehouse racks, and die transfer between press lines — that demand controlled vertical travel over long heights. A 250–500 kg electric wire rope hoist with a 20-metre rope travel is the standard solution for these tasks, providing precise hook positioning via pushbutton pendant control. The hoist mounts directly onto an existing overhead gantry or mono-rail beam, requiring minimal structural modification. In Ahmedabad and Vadodara manufacturing facilities, the same unit is used for mezzanine-to-floor material transfer, reducing forklift dependency in tight-aisle areas.

Where Wire Rope Hoists Are Deployed Across Industries

• Auto component machining shops — lifting engine heads, gearbox castings, and heavy fixtures on overhead cranes in Pune, Chennai, and Hyderabad
• Steel fabrication units — positioning I-beams, H-sections, and plate girders during welding jigs in Ahmedabad, Vatva, and Kathwada
• Construction sites — lifting cement bags, steel bundles, and shuttering materials on multi-storey projects in Pune, Bangalore, and Noida
• Pharmaceutical manufacturing — transferring IBCs (Intermediate Bulk Containers) and stainless steel process vessels in Ahmedabad’s pharma belt and Hyderabad’s bulk drug cluster
• Cold storage and warehousing — overhead loading of palletised goods in Gurugram, Faridabad, and Noida distribution centres
• Ship repair and port facilities — handling equipment and machinery in port workshops in Kutch, Bhavnagar, and Ghandhidham
• Mining and quarrying — raising drilling equipment and ore buckets in Rajasthan, Jaipur, and Udaipur mining sites
• Power plant maintenance — turbine component handling in overhead maintenance bays in Indore, Bhopal, and Rohtak

Technical Features and Performance Specifications of SRE Wire Rope Hoist for Pune and Maharashtra Plants

Plant managers sourcing a wire rope hoist for the first time often ask whether the rope grade matters — it absolutely does. The SRE Wire Rope Hoist (SKU: SRE 173) uses a 6×19 fibre core or steel core wire rope in high-tensile galvanised steel, conforming to IS 2365 standards, with a minimum breaking load 6× the working load limit. The rope drum is machined from MS casting with helical grooves to ensure single-layer rope winding without overlapping — a critical feature that prevents rope wear and ensures rope life exceeds 18 months under two-shift use. The motor uses a 3-phase 415V, 50Hz induction motor with thermal overload protection, and the hook block is forged from Grade 8 alloy steel with a safety latch conforming to IS 3815.

SRE Wire Rope Hoist Model Comparison — Capacity vs Rope Length

Model	Capacity	Rope Length	Motor Power	Lifting Speed	Price (approx.)
SRE 173-250	250 kg	10 / 20 m	0.75 kW	8 m/min	From Rs. 7,500
SRE 173-500	500 kg	10 / 20 m	1.5 kW	8 m/min	On Request
SRE 173-1T	1,000 kg (1 Ton)	10 / 20 / 30 m	2.2 kW	6 m/min	On Request
SRE 173-2T	2,000 kg (2 Ton)	10 / 20 / 30 m	3.7 kW	5 m/min	On Request
SRE 173-3T	3,000 kg (3 Ton)	20 / 30 m	5.5 kW	4 m/min	On Request

Why Factory Owners in Pune, Ahmedabad, and Rajasthan Choose SRE Wire Rope Hoist

Procurement heads at mid-sized engineering firms in Pune, Jaipur, and Udaipur commonly flag two concerns with imported hoists: (1) no local service support, and (2) replacement parts take 8–12 weeks to arrive. SRE Material Handling Equipment Pvt. Ltd., an ISO 9001:2015 certified, MSME registered Make in India manufacturer, has been producing industrial lifting equipment since 2011 from its facility in Ahmedabad, Gujarat. The company maintains ready stock of wire rope hoists from 250 kg to 10 ton capacity and ships to Pune, Nashik, Solapur, Kolhapur, Nagpur, and all Maharashtra districts within 3–7 working days. Spare ropes, hook blocks, and control pendants are stocked locally, reducing downtime from hoist repair to under 48 hours.

Sourcing Wire Rope Hoist in Pune — Pricing, Delivery, and How to Order from SRE Material Handling Equipment Pvt. Ltd.

For logistics heads in Pune, Bhavnagar, Kutch, and Ghandhidham managing warehouse overhead handling systems, the total installed cost of a wire rope hoist needs to include the hoist unit, end carriage trolley, and electrification. The SRE Wire Rope Hoist (SKU: SRE 173) starts at Rs. 7,500 (plus applicable GST) for the 250 kg model. The hoist is available with a fixed lug mount, hook mount, or motorised end carriage trolley for complete overhead crane integration. SRE Material Handling Equipment Pvt. Ltd. also supplies compatible MS or ISMC channel gantry beams and erection support for customers in Ahmedabad, Vadodara, Pune, and Bangalore. For complete overhead lifting system projects, explore the Chain Block and Hoist product range.

For plants in Indore, Bhopal, Faridabad, Rohtak, Ambala, Gurugram, Himmatnagar, Kalol, Mahesana, and Chattral requiring complete material handling system integration, pairing a wire rope hoist with a Mobile Floor Crane gives full workshop coverage — the floor crane handles horizontal travel of loads while the hoist manages vertical lifting on fixed gantry spans. Explore the complete catalogue and contact SRE Material Handling Equipment Pvt. Ltd. for a customised system quote. For vertical material movement across floors, also consider the Industrial Goods Lift range.

For international lifting equipment safety standards applicable to wire rope hoists, refer to ISO 4301 – Classification of Cranes and Hoisting Equipment. Wire rope selection and testing criteria are defined under BIS standard IS 2365 for steel wire ropes. Safe working practices for overhead lifting in Indian factories are governed by the Factories Act provisions on lifting machinery — Ministry of Labour & Employment, GoI.
